			<item>
		<title>Radial RAO-16ADSB-120</title>
		<link>http://www.radiopro.ru/?p=20417</link>
		<comments>http://www.radiopro.ru/?p=20417#comments</comments>
		<pubDate>Wed, 02 Jan 2019 09:27:21 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Панельные секторные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20417</guid>
		<description><![CDATA[Панельная секторная антенна SHF диапазона 1030-1090 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-16ADSB-120.jpg"><img class="alignright size-medium wp-image-20418" title="RAO-16ADSB-120" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-16ADSB-120-40x300.jpg" alt="RAO-16ADSB-120" width="40" height="300" /></a>Эти антенны предназначены для работы в составе базовых станций при секторировании зон обслуживания. Благодаря повышенному усилению и стандартным секторам ДН, грамотно согласованные решетки из этих антенн обеспечат заданный трафик и высокую дальность действия базовой станции ADSB.</p>
<table border="0" cellspacing="0" cellpadding="0" width="444">
<colgroup>
<col width="325"></col>
<col width="119"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="2" width="444" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="325" height="20">Модель</td>
<td width="119">RAO-16-ADSB-120</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>1030   &#8211; 1090</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td>1,5</td>
</tr>
<tr height="20">
<td height="20">Усиление, dBi</td>
<td>16</td>
</tr>
<tr height="20">
<td height="20">Отношение вперед/назад, dB</td>
<td>18</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в Е-плоскости по уровню -3dB</td>
<td>10°</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в Н-плоскости по уровню -3dB</td>
<td>120°</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td>50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td>2000   (в импульсе)</td>
</tr>
<tr height="20">
<td height="20">Поляризация</td>
<td>вертикальная</td>
</tr>
<tr height="20">
<td height="20">Электрический наклон луча</td>
<td>0</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="793">
<colgroup>
<col width="216"></col>
<col width="577"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="2" width="793" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="216" height="20">Модель</td>
<td width="577">RAO-16-ADSB-120</td>
</tr>
<tr height="20">
<td height="20">Масса не более, кг</td>
<td>8</td>
</tr>
<tr height="20">
<td height="20">Материал излучателей</td>
<td>латунь</td>
</tr>
<tr height="20">
<td height="20">Материал и цвет РПУ</td>
<td>серый   АБС-пластик или стеклопластик</td>
</tr>
<tr height="20">
<td height="20">Стандартный способ крепления</td>
<td>На   мачту 30-220 мм хомутами &laquo;Norma&raquo; или крепежом СР-55D (идет в ком.),   CP-115, CP-220</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра, м/с</td>
<td>40</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td>от   -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td>N-мама</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны (ДхШхВ), мм</td>
<td>138х160,5х2142</td>
</tr>
<tr height="20">
<td height="20">Для механического наклона ДН</td>
<td>используйте   наклонный механизм MN-1</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="346">
<colgroup>
<col width="172"></col>
<col width="174"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="172" height="20"><strong>Диаграмма   в E-плоскости</strong></td>
<td style="text-align: center;" width="174"><strong>Диаграмма в   H-плоскости</strong></td>
</tr>
<tr height="20">
<td height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-16ADSB-120_DE.jpg"><img class="aligncenter size-medium wp-image-20420" title="RAO-16ADSB-120_DE" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-16ADSB-120_DE-300x299.jpg" alt="RAO-16ADSB-120_DE" width="300" height="299" /></a></td>
<td><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-16ADSB-120_DH.jpg"><img class="aligncenter size-medium wp-image-20421" title="RAO-16ADSB-120_DH" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-16ADSB-120_DH-300x298.jpg" alt="RAO-16ADSB-120_DH" width="300" height="298" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" colspan="2" height="20"><strong>КСВ   антенны RAO-16-ADSB-120</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" colspan="2" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-16ADSB-120_SWR.JPG"><img class="aligncenter size-medium wp-image-20422" title="RAO-16ADSB-120_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-16ADSB-120_SWR-300x217.jpg" alt="RAO-16ADSB-120_SWR" width="300" height="217" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20417</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial RAV-4UH-90</title>
		<link>http://www.radiopro.ru/?p=20414</link>
		<comments>http://www.radiopro.ru/?p=20414#comments</comments>
		<pubDate>Wed, 02 Jan 2019 09:19:43 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Панельные секторные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20414</guid>
		<description><![CDATA[Панельная секторная антенна UHF диапазона 450-470 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-4UL-90.gif"><img class="alignright size-medium wp-image-20411" title="RAV-4UL-90" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-4UL-90-67x300.gif" alt="RAV-4UL-90" width="67" height="300" /></a>Данная антенна обеспечивает гарантированный сектор излучения 90 градусов по уровню половинной мощности и обладает высоким усилением за счёт концентрирования энергии по вертикали и горизонтали. Примененные в составе этой антенной решётки прямоугольные излучатели (patches) позволили создать панельную антенну с низким профилем, высоким коэффициентом усиления и отношением вперёд/назад. Антенна защищена чехлом из ABS-пластика. Рекомендуется использовать в транкинговых системах Тетра, MPT1327 и сотовых IMT-2000, NMT-450 i.</p>
<table border="0" cellspacing="0" cellpadding="0" width="589">
<colgroup>
<col width="427"></col>
<col span="2" width="81"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="589" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="427" height="20">Модель</td>
<td width="81">RAV-2UL-90</td>
<td width="81">RAV-4UL-90</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>400-430</td>
<td width="81">400-430</td>
</tr>
<tr height="20">
<td height="20"></td>
<td>RAV-2UH-90</td>
<td width="81">RAV-4UH-90</td>
</tr>
<tr height="20">
<td height="20"></td>
<td>450-470</td>
<td width="81">450-470</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td>1,5</td>
<td width="81">1,5</td>
</tr>
<tr height="20">
<td height="20">Усиление, dBi</td>
<td>8</td>
<td width="81">11</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в вертикальной плоскости по уровню -3dB, ± 1°</td>
<td>37°</td>
<td width="81">18°</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в горизонтальной плоскости по уровню -3dB, ± 5°</td>
<td>90°</td>
<td width="81">90°</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td>50</td>
<td width="81">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td>400</td>
<td width="81">400</td>
</tr>
<tr height="20">
<td height="20">Грозозащита</td>
<td>есть</td>
<td width="81">есть</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="544">
<colgroup>
<col width="248"></col>
<col span="2" width="148"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="544" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="248" height="20">Модель</td>
<td width="148">RAV-2U-90</td>
<td width="148">RAV-4U-90</td>
</tr>
<tr height="20">
<td height="20">Масса не более, кг</td>
<td>9.5</td>
<td width="148">20</td>
</tr>
<tr height="20">
<td height="20">Материал излучателей</td>
<td colspan="2" width="296">алюминий</td>
</tr>
<tr height="20">
<td height="20">Материал РПУ</td>
<td colspan="2" width="296">ABS-пластик</td>
</tr>
<tr height="20">
<td height="20">Цвет РПУ</td>
<td colspan="2" width="296">серый</td>
</tr>
<tr height="20">
<td height="20">Стандартный способ крепления</td>
<td colspan="2" width="296">на трубу диам. 45-60 мм</td>
</tr>
<tr height="20">
<td height="20">Вариант крепления под заказ</td>
<td colspan="2" width="296">на стену или ребро фермы-мачты</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра, м/с</td>
<td colspan="2" width="296">40</td>
</tr>
<tr height="20">
<td height="20">Площадь ветрового сопротивления, м<sup>2</sup></td>
<td>0.43</td>
<td width="148">0,8</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td colspan="2" width="296">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td colspan="2" width="296">N-мама (7/16 DIN под заказ)</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны, мм</td>
<td>950&#215;400x80</td>
<td width="148">1900х400х80</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="304">
<colgroup>
<col width="304"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="304" height="20"><strong>Диаграмма   антенны RAV-4U-90 в Е-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DE.gif"><img class="aligncenter size-full wp-image-20402" title="RAV-2UL-90_DE" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DE.gif" alt="RAV-2UL-90_DE" width="220" height="147" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Диаграмма антенн RAV-90 в H-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DH.gif"><img class="aligncenter size-full wp-image-20403" title="RAV-2UL-90_DH" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DH.gif" alt="RAV-2UL-90_DH" width="220" height="151" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>График КСВ антенны RAV-4UH-90</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_SWR.gif"><img class="aligncenter size-full wp-image-20404" title="RAV-2UL-90_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_SWR.gif" alt="RAV-2UL-90_SWR" width="220" height="124" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20414</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial RAV-4UL-90</title>
		<link>http://www.radiopro.ru/?p=20410</link>
		<comments>http://www.radiopro.ru/?p=20410#comments</comments>
		<pubDate>Wed, 02 Jan 2019 09:16:37 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Панельные секторные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20410</guid>
		<description><![CDATA[Панельная секторная антенна UHF диапазона 400-430 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-4UL-90.gif"><img class="alignright size-medium wp-image-20411" title="RAV-4UL-90" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-4UL-90-67x300.gif" alt="RAV-4UL-90" width="67" height="300" /></a>Данная антенна обеспечивает гарантированный сектор излучения 90 градусов по уровню половинной мощности и обладает высоким усилением за счёт концентрирования энергии по вертикали и горизонтали. Примененные в составе этой антенной решётки прямоугольные излучатели (patches) позволили создать панельную антенну с низким профилем, высоким коэффициентом усиления и отношением вперёд/назад. Антенна защищена чехлом из ABS-пластика. Рекомендуется использовать в транкинговых системах Тетра, MPT1327 и сотовых IMT-2000, NMT-450 i.</p>
<table border="0" cellspacing="0" cellpadding="0" width="589">
<colgroup>
<col width="427"></col>
<col span="2" width="81"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="589" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="427" height="20">Модель</td>
<td width="81">RAV-2UL-90</td>
<td width="81">RAV-4UL-90</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>400-430</td>
<td width="81">400-430</td>
</tr>
<tr height="20">
<td height="20"></td>
<td>RAV-2UH-90</td>
<td width="81">RAV-4UH-90</td>
</tr>
<tr height="20">
<td height="20"></td>
<td>450-470</td>
<td width="81">450-470</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td>1,5</td>
<td width="81">1,5</td>
</tr>
<tr height="20">
<td height="20">Усиление, dBi</td>
<td>8</td>
<td width="81">11</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в вертикальной плоскости по уровню -3dB, ± 1°</td>
<td>37°</td>
<td width="81">18°</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в горизонтальной плоскости по уровню -3dB, ± 5°</td>
<td>90°</td>
<td width="81">90°</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td>50</td>
<td width="81">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td>400</td>
<td width="81">400</td>
</tr>
<tr height="20">
<td height="20">Грозозащита</td>
<td>есть</td>
<td width="81">есть</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="544">
<colgroup>
<col width="248"></col>
<col span="2" width="148"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="544" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="248" height="20">Модель</td>
<td width="148">RAV-2U-90</td>
<td width="148">RAV-4U-90</td>
</tr>
<tr height="20">
<td height="20">Масса не более, кг</td>
<td>9.5</td>
<td width="148">20</td>
</tr>
<tr height="20">
<td height="20">Материал излучателей</td>
<td colspan="2" width="296">алюминий</td>
</tr>
<tr height="20">
<td height="20">Материал РПУ</td>
<td colspan="2" width="296">ABS-пластик</td>
</tr>
<tr height="20">
<td height="20">Цвет РПУ</td>
<td colspan="2" width="296">серый</td>
</tr>
<tr height="20">
<td height="20">Стандартный способ крепления</td>
<td colspan="2" width="296">на трубу диам. 45-60 мм</td>
</tr>
<tr height="20">
<td height="20">Вариант крепления под заказ</td>
<td colspan="2" width="296">на стену или ребро фермы-мачты</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра, м/с</td>
<td colspan="2" width="296">40</td>
</tr>
<tr height="20">
<td height="20">Площадь ветрового сопротивления, м<sup>2</sup></td>
<td>0.43</td>
<td width="148">0,8</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td colspan="2" width="296">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td colspan="2" width="296">N-мама (7/16 DIN под заказ)</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны, мм</td>
<td>950&#215;400x80</td>
<td width="148">1900х400х80</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="304">
<colgroup>
<col width="304"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="304" height="20"><strong>Диаграмма   антенны RAV-4U-90 в Е-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DE.gif"><img class="aligncenter size-full wp-image-20402" title="RAV-2UL-90_DE" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DE.gif" alt="RAV-2UL-90_DE" width="220" height="147" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Диаграмма антенн RAV-90 в H-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DH.gif"><img class="aligncenter size-full wp-image-20403" title="RAV-2UL-90_DH" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DH.gif" alt="RAV-2UL-90_DH" width="220" height="151" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>График КСВ антенны RAV-4UL-90</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_SWR.gif"><img class="aligncenter size-full wp-image-20404" title="RAV-2UL-90_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_SWR.gif" alt="RAV-2UL-90_SWR" width="220" height="124" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20410</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial RAV-2UH-90</title>
		<link>http://www.radiopro.ru/?p=20407</link>
		<comments>http://www.radiopro.ru/?p=20407#comments</comments>
		<pubDate>Wed, 02 Jan 2019 09:12:38 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Панельные секторные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20407</guid>
		<description><![CDATA[Панельная секторная антенна UHF диапазона 450-470 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90.jpg"><img class="alignright size-medium wp-image-20400" title="RAV-2UL-90" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90-120x300.jpg" alt="RAV-2UL-90" width="120" height="300" /></a>Данная антенна обеспечивает гарантированный сектор излучения 90 градусов по уровню половинной мощности и обладает высоким усилением за счёт концентрирования энергии по вертикали и горизонтали. Примененные в составе этой антенной решётки прямоугольные излучатели (patches) позволили создать панельную антенну с низким профилем, высоким коэффициентом усиления и отношением вперёд/назад. Антенна защищена чехлом из ABS-пластика. Рекомендуется использовать в транкинговых системах Тетра, MPT1327 и сотовых IMT-2000, NMT-450 i.</p>
<table border="0" cellspacing="0" cellpadding="0" width="589">
<colgroup>
<col width="427"></col>
<col span="2" width="81"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="589" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="427" height="20">Модель</td>
<td width="81">RAV-2UL-90</td>
<td width="81">RAV-4UL-90</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>400-430</td>
<td width="81">400-430</td>
</tr>
<tr height="20">
<td height="20"></td>
<td>RAV-2UH-90</td>
<td width="81">RAV-4UH-90</td>
</tr>
<tr height="20">
<td height="20"></td>
<td>450-470</td>
<td width="81">450-470</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td>1,5</td>
<td width="81">1,5</td>
</tr>
<tr height="20">
<td height="20">Усиление, dBi</td>
<td>8</td>
<td width="81">11</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в вертикальной плоскости по уровню -3dB, ± 1°</td>
<td>37°</td>
<td width="81">18°</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в горизонтальной плоскости по уровню -3dB, ± 5°</td>
<td>90°</td>
<td width="81">90°</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td>50</td>
<td width="81">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td>400</td>
<td width="81">400</td>
</tr>
<tr height="20">
<td height="20">Грозозащита</td>
<td>есть</td>
<td width="81">есть</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="544">
<colgroup>
<col width="248"></col>
<col span="2" width="148"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="544" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="248" height="20">Модель</td>
<td width="148">RAV-2U-90</td>
<td width="148">RAV-4U-90</td>
</tr>
<tr height="20">
<td height="20">Масса не более, кг</td>
<td>9.5</td>
<td width="148">20</td>
</tr>
<tr height="20">
<td height="20">Материал излучателей</td>
<td colspan="2" width="296">алюминий</td>
</tr>
<tr height="20">
<td height="20">Материал РПУ</td>
<td colspan="2" width="296">ABS-пластик</td>
</tr>
<tr height="20">
<td height="20">Цвет РПУ</td>
<td colspan="2" width="296">серый</td>
</tr>
<tr height="20">
<td height="20">Стандартный способ крепления</td>
<td colspan="2" width="296">на трубу диам. 45-60 мм</td>
</tr>
<tr height="20">
<td height="20">Вариант крепления под заказ</td>
<td colspan="2" width="296">на стену или ребро фермы-мачты</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра, м/с</td>
<td colspan="2" width="296">40</td>
</tr>
<tr height="20">
<td height="20">Площадь ветрового сопротивления, м<sup>2</sup></td>
<td>0.43</td>
<td width="148">0,8</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td colspan="2" width="296">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td colspan="2" width="296">N-мама (7/16 DIN под заказ)</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны, мм</td>
<td>950&#215;400x80</td>
<td width="148">1900х400х80</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="304">
<colgroup>
<col width="304"></col>
</colgroup>
<tbody>
<tr height="20">

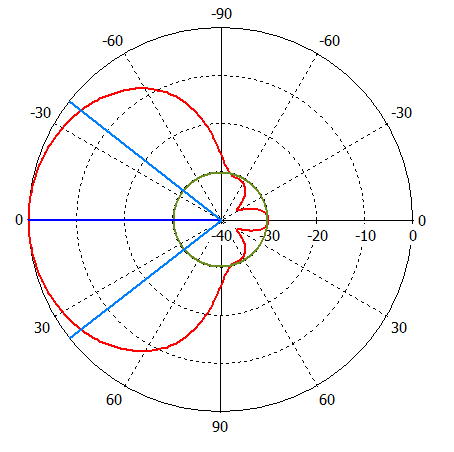

<td style="text-align: center;" width="304" height="20"><strong>Диаграмма   антенны RAV-2U-90 в Е-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DE.gif"><img class="aligncenter size-full wp-image-20402" title="RAV-2UL-90_DE" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DE.gif" alt="RAV-2UL-90_DE" width="220" height="147" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Диаграмма антенн RAV-90 в H-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DH.gif"><img class="aligncenter size-full wp-image-20403" title="RAV-2UL-90_DH" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DH.gif" alt="RAV-2UL-90_DH" width="220" height="151" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>График КСВ антенны RAV-2UL-90</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_SWR.gif"><img class="aligncenter size-full wp-image-20404" title="RAV-2UL-90_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_SWR.gif" alt="RAV-2UL-90_SWR" width="220" height="124" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20407</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial RAV-2UL-90</title>
		<link>http://www.radiopro.ru/?p=20399</link>
		<comments>http://www.radiopro.ru/?p=20399#comments</comments>
		<pubDate>Wed, 02 Jan 2019 09:06:52 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Панельные секторные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20399</guid>
		<description><![CDATA[Панельная секторная антенна UHF диапазона 400-430 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90.jpg"><img class="alignright size-medium wp-image-20400" title="RAV-2UL-90" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90-120x300.jpg" alt="RAV-2UL-90" width="120" height="300" /></a>Данная антенна обеспечивает гарантированный сектор излучения 90 градусов по уровню половинной мощности и обладает высоким усилением за счёт концентрирования энергии по вертикали и горизонтали. Примененные в составе этой антенной решётки прямоугольные излучатели (patches) позволили создать панельную антенну с низким профилем, высоким коэффициентом усиления и отношением вперёд/назад. Антенна защищена чехлом из ABS-пластика. Рекомендуется использовать в транкинговых системах Тетра, MPT1327 и сотовых IMT-2000, NMT-450 i.</p>
<table border="0" cellspacing="0" cellpadding="0" width="589">
<colgroup>
<col width="427"></col>
<col span="2" width="81"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="589" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="427" height="20">Модель</td>
<td width="81">RAV-2UL-90</td>
<td width="81">RAV-4UL-90</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>400-430</td>
<td width="81">400-430</td>
</tr>
<tr height="20">
<td height="20"></td>
<td>RAV-2UH-90</td>
<td width="81">RAV-4UH-90</td>
</tr>
<tr height="20">
<td height="20"></td>
<td>450-470</td>
<td width="81">450-470</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td>1,5</td>
<td width="81">1,5</td>
</tr>
<tr height="20">
<td height="20">Усиление, dBi</td>
<td>8</td>
<td width="81">11</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в вертикальной плоскости по уровню -3dB, ± 1°</td>
<td>37°</td>
<td width="81">18°</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в горизонтальной плоскости по уровню -3dB, ± 5°</td>
<td>90°</td>
<td width="81">90°</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td>50</td>
<td width="81">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td>400</td>
<td width="81">400</td>
</tr>
<tr height="20">
<td height="20">Грозозащита</td>
<td>есть</td>
<td width="81">есть</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="544">
<colgroup>
<col width="248"></col>
<col span="2" width="148"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="544" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="248" height="20">Модель</td>
<td width="148">RAV-2U-90</td>
<td width="148">RAV-4U-90</td>
</tr>
<tr height="20">
<td height="20">Масса не более, кг</td>
<td>9.5</td>
<td width="148">20</td>
</tr>
<tr height="20">
<td height="20">Материал излучателей</td>
<td colspan="2" width="296">алюминий</td>
</tr>
<tr height="20">
<td height="20">Материал РПУ</td>
<td colspan="2" width="296">ABS-пластик</td>
</tr>
<tr height="20">
<td height="20">Цвет РПУ</td>
<td colspan="2" width="296">серый</td>
</tr>
<tr height="20">
<td height="20">Стандартный способ крепления</td>
<td colspan="2" width="296">на трубу диам. 45-60 мм</td>
</tr>
<tr height="20">
<td height="20">Вариант крепления под заказ</td>
<td colspan="2" width="296">на стену или ребро фермы-мачты</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра, м/с</td>
<td colspan="2" width="296">40</td>
</tr>
<tr height="20">
<td height="20">Площадь ветрового сопротивления, м<sup>2</sup></td>
<td>0.43</td>
<td width="148">0,8</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td colspan="2" width="296">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td colspan="2" width="296">N-мама (7/16 DIN под заказ)</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны, мм</td>
<td>950&#215;400x80</td>
<td width="148">1900х400х80</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="304">
<colgroup>
<col width="304"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="304" height="20"><strong>Диаграмма   антенны RAV-2U-90 в Е-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DE.gif"><img class="aligncenter size-full wp-image-20402" title="RAV-2UL-90_DE" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DE.gif" alt="RAV-2UL-90_DE" width="220" height="147" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Диаграмма антенн RAV-90 в H-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DH.gif"><img class="aligncenter size-full wp-image-20403" title="RAV-2UL-90_DH" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_DH.gif" alt="RAV-2UL-90_DH" width="220" height="151" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>График КСВ антенны RAV-2UL-90</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_SWR.gif"><img class="aligncenter size-full wp-image-20404" title="RAV-2UL-90_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/RAV-2UL-90_SWR.gif" alt="RAV-2UL-90_SWR" width="220" height="124" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20399</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial RAO-4U-120</title>
		<link>http://www.radiopro.ru/?p=20394</link>
		<comments>http://www.radiopro.ru/?p=20394#comments</comments>
		<pubDate>Wed, 02 Jan 2019 08:58:53 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Панельные секторные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20394</guid>
		<description><![CDATA[Панельная секторная антенна UHF диапазона 400-470 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-4U-120.jpg"><img class="alignright size-medium wp-image-20395" title="RAO-4U-120" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-4U-120-102x300.jpg" alt="RAO-4U-120" width="102" height="300" /></a>Антенны серии &laquo;RAO-U&raquo; применяются в качестве приемо-передающих в транкинговых многоканальных системах стандартов Тетра и MPT1327, а также в сотовых системах NMT-450 и CDMA-450. Они могут использоваться как одиночные секторные антенны в системах связи, действующих по принципу сотового разделения зон обслуживания, так и являться элементами кольцевых антенных решеток. Антенны данного типа пользуются большим спросом, благодаря повышенному усилению. Антенна RAO-2U представляет собой фазированную решетку из двух широкополосных элементов с параллельным питанием. Особая форма рефлектора обеспечивает необходимые сектора излучения (60° и 120°). Панельные антенны этого класса выгодно отличаются от классических антенных решёток на петлевых диполях гарантированным стандартным значением ширины диаграммы направленности, повышенным подавлением обратного излучения, а также высокой степенью защиты от осадков, благодаря высококачественному радиопрозрачному укрытию из ABS-пластика.</p>
<table border="0" cellspacing="0" cellpadding="0" width="660">
<colgroup>
<col width="427"></col>
<col width="73"></col>
<col span="2" width="80"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="4" width="660" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="427" height="20">Модель</td>
<td width="73">RAO-2U-60</td>
<td width="80">RAO-2U-120</td>
<td width="80">RAO-4U-120</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>380-500</td>
<td width="80">400-470</td>
<td width="80">400-470</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td>1,5</td>
<td width="80">1,5</td>
<td width="80">1.5</td>
</tr>
<tr height="20">
<td height="20">Усиление, dBi</td>
<td>10</td>
<td width="80">8</td>
<td width="80">11</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в вертикальной плоскости по уровню -3dB, ± 1°</td>
<td style="text-align: center;" colspan="2" width="153">36°</td>
<td style="text-align: left;" width="80">170</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в горизонтальной плоскости по уровню -3dB, ± 5°</td>
<td>60°</td>
<td width="80">120°</td>
<td width="80">120°</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td style="text-align: center;" colspan="3" width="233">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td>500</td>
<td width="80">400</td>
<td width="80">400</td>
</tr>
<tr height="20">
<td height="20">Грозозащита</td>
<td style="text-align: center;" colspan="3" width="233">цельнометаллическая конструкция</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="524">
<colgroup>
<col width="248"></col>
<col span="3" width="92"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="4" width="524" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="248" height="20">Модель</td>
<td width="92">RAO-2U-60</td>
<td width="92">RAO-2U-120</td>
<td width="92">RAO-4U-120</td>
</tr>
<tr height="20">
<td height="20">Масса не более, кг</td>
<td>9,5</td>
<td width="92">7</td>
<td width="92">15,6</td>
</tr>
<tr height="20">
<td height="20">Материал излучателей</td>
<td colspan="3" width="276">алюминий</td>
</tr>
<tr height="20">
<td height="20">Материал РПУ</td>
<td colspan="3" width="276">АБС-пластик</td>
</tr>
<tr height="20">
<td height="20">Цвет РПУ</td>
<td colspan="3" width="276">серый</td>
</tr>
<tr height="20">
<td height="20">Стандартный способ крепления</td>
<td colspan="3" width="276">на трубу диам. 45-60 мм</td>
</tr>
<tr height="20">
<td height="20">Вариант крепления под заказ</td>
<td colspan="3" width="276">на стену или ребро фермы-мачты</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра, м/с</td>
<td style="text-align: center;" colspan="3" width="276">40</td>
</tr>
<tr height="20">
<td height="20">Площадь ветрового сопротивления, м<sup>2</sup></td>
<td>0,8</td>
<td width="92">0,46</td>
<td width="92">0,84</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td colspan="3" width="276">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td colspan="3" width="276">N-мама (7/16 DIN под заказ)</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны, cм</td>
<td>80х113х26</td>
<td width="92">41&#215;113x26</td>
<td width="92">41&#215;205x26</td>
</tr>
<tr height="20">
<td height="20">Габариты упаковки, мм</td>
<td>420х300х1235</td>
<td width="92">420х270х1235</td>
<td width="92">420&#215;270x2200</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="300">
<colgroup>
<col width="300"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="300" height="20"><strong>Диаграммы   антенн в Н-плоскости RAO-4U-120</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-120_DH.gif"><img class="aligncenter size-full wp-image-20390" title="RAO-2U-120_DH" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-120_DH.gif" alt="RAO-2U-120_DH" width="220" height="149" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Диаграмма антенн RAO-4U в Е-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-4U-120_DE.gif"><img class="aligncenter size-full wp-image-20396" title="RAO-4U-120_DE" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-4U-120_DE.gif" alt="RAO-4U-120_DE" width="220" height="153" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Типовой график КСВ антенны RAO-4U-120</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60_SWR.jpg"><img class="aligncenter size-medium wp-image-20386" title="RAO-2U-60_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60_SWR-300x231.jpg" alt="RAO-2U-60_SWR" width="300" height="231" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20394</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial RAO-2U-120</title>
		<link>http://www.radiopro.ru/?p=20388</link>
		<comments>http://www.radiopro.ru/?p=20388#comments</comments>
		<pubDate>Wed, 02 Jan 2019 08:53:47 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Панельные секторные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20388</guid>
		<description><![CDATA[Панельная секторная антенна UHF диапазона 400-470 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-120.jpg"><img class="alignright size-full wp-image-20389" title="RAO-2U-120" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-120.jpg" alt="RAO-2U-120" width="150" height="265" /></a>Антенны серии &laquo;RAO-U&raquo; применяются в качестве приемо-передающих в транкинговых многоканальных системах стандартов Тетра и MPT1327, а также в сотовых системах NMT-450 и CDMA-450. Они могут использоваться как одиночные секторные антенны в системах связи, действующих по принципу сотового разделения зон обслуживания, так и являться элементами кольцевых антенных решеток. Антенны данного типа пользуются большим спросом, благодаря повышенному усилению. Антенна RAO-2U представляет собой фазированную решетку из двух широкополосных элементов с параллельным питанием. Особая форма рефлектора обеспечивает необходимые сектора излучения (60° и 120°). Панельные антенны этого класса выгодно отличаются от классических антенных решёток на петлевых диполях гарантированным стандартным значением ширины диаграммы направленности, повышенным подавлением обратного излучения, а также высокой степенью защиты от осадков, благодаря высококачественному радиопрозрачному укрытию из ABS-пластика.</p>
<table border="0" cellspacing="0" cellpadding="0" width="660">
<colgroup>
<col width="427"></col>
<col width="73"></col>
<col span="2" width="80"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="4" width="660" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="427" height="20">Модель</td>
<td width="73">RAO-2U-60</td>
<td width="80">RAO-2U-120</td>
<td width="80">RAO-4U-120</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>380-500</td>
<td width="80">400-470</td>
<td width="80">400-470</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td>1,5</td>
<td width="80">1,5</td>
<td width="80">1.5</td>
</tr>
<tr height="20">
<td height="20">Усиление, dBi</td>
<td>10</td>
<td width="80">8</td>
<td width="80">11</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в вертикальной плоскости по уровню -3dB, ± 1°</td>
<td style="text-align: center;" colspan="2" width="153">36°</td>
<td style="text-align: left;" width="80">170</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в горизонтальной плоскости по уровню -3dB, ± 5°</td>
<td>60°</td>
<td width="80">120°</td>
<td width="80">120°</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td style="text-align: center;" colspan="3" width="233">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td>500</td>
<td width="80">400</td>
<td width="80">400</td>
</tr>
<tr height="20">
<td height="20">Грозозащита</td>
<td style="text-align: center;" colspan="3" width="233">цельнометаллическая конструкция</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="524">
<colgroup>
<col width="248"></col>
<col span="3" width="92"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="4" width="524" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="248" height="20">Модель</td>
<td width="92">RAO-2U-60</td>
<td width="92">RAO-2U-120</td>
<td width="92">RAO-4U-120</td>
</tr>
<tr height="20">
<td height="20">Масса не более, кг</td>
<td>9,5</td>
<td width="92">7</td>
<td width="92">15,6</td>
</tr>
<tr height="20">
<td height="20">Материал излучателей</td>
<td colspan="3" width="276">алюминий</td>
</tr>
<tr height="20">
<td height="20">Материал РПУ</td>
<td colspan="3" width="276">АБС-пластик</td>
</tr>
<tr height="20">
<td height="20">Цвет РПУ</td>
<td colspan="3" width="276">серый</td>
</tr>
<tr height="20">
<td height="20">Стандартный способ крепления</td>
<td colspan="3" width="276">на трубу диам. 45-60 мм</td>
</tr>
<tr height="20">
<td height="20">Вариант крепления под заказ</td>
<td colspan="3" width="276">на стену или ребро фермы-мачты</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра, м/с</td>
<td style="text-align: center;" colspan="3" width="276">40</td>
</tr>
<tr height="20">
<td height="20">Площадь ветрового сопротивления, м<sup>2</sup></td>
<td>0,8</td>
<td width="92">0,46</td>
<td width="92">0,84</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td colspan="3" width="276">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td colspan="3" width="276">N-мама (7/16 DIN под заказ)</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны, cм</td>
<td>80х113х26</td>
<td width="92">41&#215;113x26</td>
<td width="92">41&#215;205x26</td>
</tr>
<tr height="20">
<td height="20">Габариты упаковки, мм</td>
<td>420х300х1235</td>
<td width="92">420х270х1235</td>
<td width="92">420&#215;270x2200</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="300">
<colgroup>
<col width="300"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="300" height="20"><strong>Диаграммы   антенн в Н-плоскости RAO-2U-120</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-120_DH.gif"><img class="aligncenter size-full wp-image-20390" title="RAO-2U-120_DH" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-120_DH.gif" alt="RAO-2U-120_DH" width="220" height="149" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Диаграмма антенн RAO-2U в Е-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60_DE.gif"><img class="aligncenter size-full wp-image-20385" title="RAO-2U-60_DE" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60_DE.gif" alt="RAO-2U-60_DE" width="220" height="153" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Типовой график КСВ антенны RAO-2U-120</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60_SWR.jpg"><img class="aligncenter size-medium wp-image-20386" title="RAO-2U-60_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60_SWR-300x231.jpg" alt="RAO-2U-60_SWR" width="300" height="231" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20388</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial RAO-2U-60</title>
		<link>http://www.radiopro.ru/?p=20380</link>
		<comments>http://www.radiopro.ru/?p=20380#comments</comments>
		<pubDate>Wed, 02 Jan 2019 08:47:13 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Панельные секторные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20380</guid>
		<description><![CDATA[Панельная секторная антенна UHF диапазона 380-500 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60.jpg"><img class="alignright size-medium wp-image-20381" title="RAO-2U-60" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60-205x300.jpg" alt="RAO-2U-60" width="205" height="300" /></a>Антенны серии &laquo;RAO-U&raquo; применяются в качестве приемо-передающих в транкинговых многоканальных системах стандартов Тетра и MPT1327, а также в сотовых системах NMT-450 и CDMA-450. Они могут использоваться как одиночные секторные антенны в системах связи, действующих по принципу сотового разделения зон обслуживания, так и являться элементами кольцевых антенных решеток. Антенны данного типа пользуются большим спросом, благодаря повышенному усилению. Антенна RAO-2U представляет собой фазированную решетку из двух широкополосных элементов с параллельным питанием. Особая форма рефлектора обеспечивает необходимые сектора излучения (60° и 120°). Панельные антенны этого класса выгодно отличаются от классических антенных решёток на петлевых диполях гарантированным стандартным значением ширины диаграммы направленности, повышенным подавлением обратного излучения, а также высокой степенью защиты от осадков, благодаря высококачественному радиопрозрачному укрытию из ABS-пластика.</p>
<table border="0" cellspacing="0" cellpadding="0" width="660">
<colgroup>
<col width="427"></col>
<col width="73"></col>
<col span="2" width="80"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="4" width="660" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="427" height="20">Модель</td>
<td width="73">RAO-2U-60</td>
<td width="80">RAO-2U-120</td>
<td width="80">RAO-4U-120</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>380-500</td>
<td width="80">400-470</td>
<td width="80">400-470</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td>1,5</td>
<td width="80">1,5</td>
<td width="80">1.5</td>
</tr>
<tr height="20">
<td height="20">Усиление, dBi</td>
<td>10</td>
<td width="80">8</td>
<td width="80">11</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в вертикальной плоскости по уровню -3dB, ± 1°</td>
<td style="text-align: center;" colspan="2" width="153">36°</td>
<td style="text-align: left;" width="80">170</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в горизонтальной плоскости по уровню -3dB, ± 5°</td>
<td>60°</td>
<td width="80">120°</td>
<td width="80">120°</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td style="text-align: center;" colspan="3" width="233">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td>500</td>
<td width="80">400</td>
<td width="80">400</td>
</tr>
<tr height="20">
<td height="20">Грозозащита</td>
<td style="text-align: center;" colspan="3" width="233">цельнометаллическая конструкция</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="524">
<colgroup>
<col width="248"></col>
<col span="3" width="92"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="4" width="524" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="248" height="20">Модель</td>
<td width="92">RAO-2U-60</td>
<td width="92">RAO-2U-120</td>
<td width="92">RAO-4U-120</td>
</tr>
<tr height="20">
<td height="20">Масса не более, кг</td>
<td>9,5</td>
<td width="92">7</td>
<td width="92">15,6</td>
</tr>
<tr height="20">
<td height="20">Материал излучателей</td>
<td colspan="3" width="276">алюминий</td>
</tr>
<tr height="20">
<td height="20">Материал РПУ</td>
<td colspan="3" width="276">АБС-пластик</td>
</tr>
<tr height="20">
<td height="20">Цвет РПУ</td>
<td colspan="3" width="276">серый</td>
</tr>
<tr height="20">
<td height="20">Стандартный способ крепления</td>
<td colspan="3" width="276">на трубу диам. 45-60 мм</td>
</tr>
<tr height="20">
<td height="20">Вариант крепления под заказ</td>
<td colspan="3" width="276">на стену или ребро фермы-мачты</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра, м/с</td>
<td style="text-align: center;" colspan="3" width="276">40</td>
</tr>
<tr height="20">
<td height="20">Площадь ветрового сопротивления, м<sup>2</sup></td>
<td>0,8</td>
<td width="92">0,46</td>
<td width="92">0,84</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td colspan="3" width="276">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td colspan="3" width="276">N-мама (7/16 DIN под заказ)</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны, cм</td>
<td>80х113х26</td>
<td width="92">41&#215;113x26</td>
<td width="92">41&#215;205x26</td>
</tr>
<tr height="20">
<td height="20">Габариты упаковки, мм</td>
<td>420х300х1235</td>
<td width="92">420х270х1235</td>
<td width="92">420&#215;270x2200</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="300">
<colgroup>
<col width="300"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="300" height="20"><strong>Диаграммы   антенн в Н-плоскости RAO-2U-60</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60_DH.gif"><img class="aligncenter size-full wp-image-20383" title="RAO-2U-60_DH" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60_DH.gif" alt="RAO-2U-60_DH" width="220" height="150" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Диаграмма антенн RAO-2U в Е-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60_DE.gif"><img class="aligncenter size-full wp-image-20385" title="RAO-2U-60_DE" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60_DE.gif" alt="RAO-2U-60_DE" width="220" height="153" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Типовой график КСВ антенны RAO-2U-60</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60_SWR.jpg"><img class="aligncenter size-medium wp-image-20386" title="RAO-2U-60_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/RAO-2U-60_SWR-300x231.jpg" alt="RAO-2U-60_SWR" width="300" height="231" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20380</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial SU-3CDMA-G</title>
		<link>http://www.radiopro.ru/?p=20370</link>
		<comments>http://www.radiopro.ru/?p=20370#comments</comments>
		<pubDate>Wed, 02 Jan 2019 08:36:17 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Панельные секторные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20370</guid>
		<description><![CDATA[Панельная секторная антенна UHF диапазона 430-470 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3CDMA-G.jpg"><img class="alignright size-full wp-image-20371" title="SU-3CDMA-G" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3CDMA-G.jpg" alt="SU-3CDMA-G" width="250" height="166" /></a></p>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Данная антенна разработана как слабонаправленная с небольшим усилением для применения внутри помещений или на стенах зданий.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Ее отличает приятный внешний вид, широкая рабочая полоса и малые габариты.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Антенна представляет собой «патчевый» излучатель. По причине малых размеров металлического экрана ее параметры зависят от проводимости подстилающей поверхности. Поэтому параметры согласования этой модели гарантированы только при ее размещении на кирпичной или бетонной поверхности.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Антенну можно использовать для передачи данных в составе радиомодемов на 433 МГц, CDMA терминалов и других охранных систем и средств голосовой радиосвязи.</div>
<p>Данная антенна разработана как слабонаправленная с небольшим усилением для применения внутри помещений или на стенах зданий.</p>
<p>Ее отличает приятный внешний вид, широкая рабочая полоса и малые габариты.</p>
<p>Антенна представляет собой «патчевый» излучатель. По причине малых размеров металлического экрана ее параметры зависят от проводимости подстилающей поверхности. Поэтому параметры согласования этой модели гарантированы только при ее размещении на кирпичной или бетонной поверхности.</p>
<p>Антенну можно использовать для передачи данных в составе радиомодемов на 433 МГц, CDMA терминалов и других охранных систем и средств голосовой радиосвязи.</p>
<table style="border-collapse: collapse; width: 162pt;" border="0" cellspacing="0" cellpadding="0" width="216">
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; width: 81pt;" width="108" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3CDMA-G_2.jpg"><img class="aligncenter size-medium wp-image-20373" title="SU-3CDMA-G_2" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3CDMA-G_2-300x174.jpg" alt="SU-3CDMA-G_2" width="300" height="174" /></a></td>
<td class="xl67" style="border-left: none; width: 81pt;" width="108"><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3CDMA-G_3.jpg"><img class="aligncenter size-medium wp-image-20374" title="SU-3CDMA-G_3" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3CDMA-G_3-300x284.jpg" alt="SU-3CDMA-G_3" width="300" height="284" /></a></td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 310pt;" border="0" cellspacing="0" cellpadding="0" width="413">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 11885; width: 244pt;" width="325"></col>
<col style="mso-width-source: userset; mso-width-alt: 3218; width: 66pt;" width="88"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl70" style="height: 15.0pt; width: 310pt;" colspan="2" width="413" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 244pt;" width="325" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">SU-3CDMA-G</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">430-470</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">2</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">3</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения в E-плоскости по уровню -3dB</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">1200</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения в H-плоскости по уровню -3dB</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">1800</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">50</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">200</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Поляризация</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">вертикальная</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 251pt;" border="0" cellspacing="0" cellpadding="0" width="335">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 7899; width: 162pt;" width="216"></col>
<col style="mso-width-source: userset; mso-width-alt: 4352; width: 89pt;" width="119"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl70" style="height: 15.0pt; width: 251pt;" colspan="2" width="335" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 162pt;" width="216" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 89pt; margin-right: 0px;" width="119">SU-3CDMA-G</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Масса не более, кг</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">01.дек</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал излучателя</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">латунь</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал и цвет РПУ</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">Белый   полистирол</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Стандартный способ крепления</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">на   стену</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Вариант крепления под заказ</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">на   мачту</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диапазон рабочих температур, °С</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">от   -50 до +50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">TNC-мама</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Габариты антенны, мм</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">350х210х65</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 263pt;" border="0" cellspacing="0" cellpadding="0" width="350">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 12800; width: 263pt;" width="350"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 263pt; text-align: center;" width="350" height="20"><strong>КСВ   антенны SU-3CDMA-G</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3CDMA-G_SWR.jpg"><img class="aligncenter size-full wp-image-20376" title="SU-3CDMA-G_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3CDMA-G_SWR.jpg" alt="SU-3CDMA-G_SWR" width="300" height="150" /></a></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>Диаграмма антенны (3D-макет)</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3CDMA-G_3D.jpg"><img class="aligncenter size-full wp-image-20377" title="SU-3CDMA-G_3D" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3CDMA-G_3D.jpg" alt="SU-3CDMA-G_3D" width="300" height="225" /></a></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>Диаграмма антенн серии &laquo;SU-3CDMA&raquo; в Н-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3CDMA-G_DH.jpg"><img class="aligncenter size-full wp-image-20378" title="SU-3CDMA-G_DH" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3CDMA-G_DH.jpg" alt="SU-3CDMA-G_DH" width="252" height="225" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20370</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial SU-3UL</title>
		<link>http://www.radiopro.ru/?p=20366</link>
		<comments>http://www.radiopro.ru/?p=20366#comments</comments>
		<pubDate>Wed, 02 Jan 2019 08:19:40 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Панельные секторные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20366</guid>
		<description><![CDATA[Панельная секторная антенна UHF диапазона 410-430 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3T.jpg"><img class="alignright size-full wp-image-20355" title="SU-3T" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3T.jpg" alt="SU-3T" width="250" height="278" /></a>Данная антенна разработана как слабонаправленная с небольшим усилением для применения внутри помещений или на стенах зданий. Ее отличает приятный внешний вид, широкая рабочая полоса и малые габариты. Антенна представляет собой «патчевый» излучатель. По причине малых размеров металлического экрана ее параметры зависят от проводимости подстилающей поверхности. Поэтому параметры согласования этой модели гарантированы только при ее размещении на кирпичной или бетонной поверхности.</p>
<table style="border-collapse: collapse; width: 378pt;" border="0" cellspacing="0" cellpadding="0" width="504">
<tbody>
<tr style="height: 15.0pt;" height="20">
<td style="height: 15.0pt; width: 189pt;" width="252" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_2.jpg"><img class="aligncenter size-medium wp-image-20361" title="SU-3T_2" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_2-300x174.jpg" alt="SU-3T_2" width="300" height="174" /></a></td>
<td style="width: 189pt;" width="252"><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_3.jpg"><img class="aligncenter size-medium wp-image-20362" title="SU-3T_3" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_3-300x284.jpg" alt="SU-3T_3" width="300" height="284" /></a></td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="431">
<colgroup>
<col width="325"></col>
<col span="2" width="53"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="431" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="325" height="20">Модель</td>
<td width="53">SU-3T</td>
<td width="53">SU-3UL</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>380-400</td>
<td width="53">410-430</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td>1,5</td>
<td width="53">1.5</td>
</tr>
<tr height="20">
<td height="20">Усиление, dBi</td>
<td>4</td>
<td width="53">4</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в E-плоскости по уровню -3dB</td>
<td>1800</td>
<td width="53">1800</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в H-плоскости по уровню -3dB</td>
<td>180°</td>
<td width="53">1800</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td>50</td>
<td width="53">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td>200</td>
<td width="53">200</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="566">
<colgroup>
<col width="216"></col>
<col span="2" width="175"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="566" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="216" height="20">Модель</td>
<td width="175">SU-3T</td>
<td width="175">SU-3UL</td>
</tr>
<tr height="20">
<td height="20">Масса не более, кг</td>
<td>янв.15</td>
<td width="175">янв.15</td>
</tr>
<tr height="20">
<td height="20">Материал излучателя</td>
<td>латунь</td>
<td width="175">латунь</td>
</tr>
<tr height="20">
<td height="20">Материал и цвет РПУ</td>
<td>Белый   полистирол</td>
<td width="175">Белый полистирол</td>
</tr>
<tr height="20">
<td height="20">Стандартный способ крепления</td>
<td>на   стену</td>
<td width="175">на стену</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td>от   -50 до +50</td>
<td width="175">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td colspan="2" width="350">TNC-мама/N-мама на корпусе или на кабельном выводе</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны, мм</td>
<td>350х210х65</td>
<td width="175">350х210х65</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="274">
<colgroup>
<col width="274"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="274" height="20"><strong>Диаграмма   антенны SU-3Т в H-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_DH.jpg"><img class="aligncenter size-medium wp-image-20363" title="SU-3T_DH" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_DH-300x266.jpg" alt="SU-3T_DH" width="300" height="266" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Диаграмма КСВ антенны</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3UL_SWR.jpg"><img class="aligncenter size-full wp-image-20367" title="SU-3UL_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3UL_SWR.jpg" alt="SU-3UL_SWR" width="300" height="217" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20366</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial SU-3T</title>
		<link>http://www.radiopro.ru/?p=20353</link>
		<comments>http://www.radiopro.ru/?p=20353#comments</comments>
		<pubDate>Wed, 02 Jan 2019 08:09:31 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Панельные секторные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20353</guid>
		<description><![CDATA[Панельная секторная антенна UHF диапазона 380-400 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3T.jpg"><img class="alignright size-full wp-image-20355" title="SU-3T" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3T.jpg" alt="SU-3T" width="250" height="278" /></a>Данная антенна разработана как слабонаправленная с небольшим усилением для применения внутри помещений или на стенах зданий. Ее отличает приятный внешний вид, широкая рабочая полоса и малые габариты. Антенна представляет собой «патчевый» излучатель. По причине малых размеров металлического экрана ее параметры зависят от проводимости подстилающей поверхности. Поэтому параметры согласования этой модели гарантированы только при ее размещении на кирпичной или бетонной поверхности.</p>
<table style="border-collapse: collapse; width: 378pt;" border="0" cellspacing="0" cellpadding="0" width="504">
<tbody>
<tr style="height: 15.0pt;" height="20">
<td style="height: 15.0pt; width: 189pt;" width="252" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_2.jpg"><img class="aligncenter size-medium wp-image-20361" title="SU-3T_2" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_2-300x174.jpg" alt="SU-3T_2" width="300" height="174" /></a></td>
<td style="width: 189pt;" width="252"><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_3.jpg"><img class="aligncenter size-medium wp-image-20362" title="SU-3T_3" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_3-300x284.jpg" alt="SU-3T_3" width="300" height="284" /></a></td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="431">
<colgroup>
<col width="325"></col>
<col span="2" width="53"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="431" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="325" height="20">Модель</td>
<td width="53">SU-3T</td>
<td width="53">SU-3UL</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>380-400</td>
<td width="53">410-430</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td>1,5</td>
<td width="53">1.5</td>
</tr>
<tr height="20">
<td height="20">Усиление, dBi</td>
<td>4</td>
<td width="53">4</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в E-плоскости по уровню -3dB</td>
<td>1800</td>
<td width="53">1800</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в H-плоскости по уровню -3dB</td>
<td>180°</td>
<td width="53">1800</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td>50</td>
<td width="53">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td>200</td>
<td width="53">200</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="566">
<colgroup>
<col width="216"></col>
<col span="2" width="175"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="566" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="216" height="20">Модель</td>
<td width="175">SU-3T</td>
<td width="175">SU-3UL</td>
</tr>
<tr height="20">
<td height="20">Масса не более, кг</td>
<td>янв.15</td>
<td width="175">янв.15</td>
</tr>
<tr height="20">
<td height="20">Материал излучателя</td>
<td>латунь</td>
<td width="175">латунь</td>
</tr>
<tr height="20">
<td height="20">Материал и цвет РПУ</td>
<td>Белый   полистирол</td>
<td width="175">Белый полистирол</td>
</tr>
<tr height="20">
<td height="20">Стандартный способ крепления</td>
<td>на   стену</td>
<td width="175">на стену</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td>от   -50 до +50</td>
<td width="175">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td colspan="2" width="350">TNC-мама/N-мама на корпусе или на кабельном выводе</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны, мм</td>
<td>350х210х65</td>
<td width="175">350х210х65</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="274">
<colgroup>
<col width="274"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="274" height="20"><strong>Диаграмма   антенны SU-3Т в H-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_DH.jpg"><img class="aligncenter size-medium wp-image-20363" title="SU-3T_DH" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_DH-300x266.jpg" alt="SU-3T_DH" width="300" height="266" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Диаграмма КСВ антенны</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_SWR.jpg"><img class="aligncenter size-full wp-image-20364" title="SU-3T_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/SU-3T_SWR.jpg" alt="SU-3T_SWR" width="300" height="217" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20353</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial LA-UHF</title>
		<link>http://www.radiopro.ru/?p=20345</link>
		<comments>http://www.radiopro.ru/?p=20345#comments</comments>
		<pubDate>Wed, 02 Jan 2019 07:56:58 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Локомотивные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20345</guid>
		<description><![CDATA[Локомотивная антенна круговой направленности UHF диапазона, модификаций LA-UHF (400-490 МГц), LA-443 (428-438 МГц), LA-446 (440-452 МГц) и LA-CMDA (453-467 МГц).]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/LA-UHF.jpg"><img class="alignright size-full wp-image-20346" title="LA-UHF" src="http://www.radiopro.ru/next/wp-content/uploads/LA-UHF.jpg" alt="LA-UHF" width="300" height="206" /></a></p>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Антенны локомотивные новой линейки моделей &laquo;LA&raquo; предназначены для эксплуатации в системах связи на железнодорожном транспорте в диапазоне 405-470 МГц. Однако, удачная конструкция и схемотехническое решение позволяют существенно расширить область ее использования. Антенна может применяться как на других видах транспорта, так и на стационарных объектах. Оборудование стандарта TETRA, работающее в этом диапазоне, а также система передачи данных может иметь в своем составе эти мобильные антенны.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Антенна LA-433 представляет собой модификацию антенны LA-UHF, настроенную на центральную частоту 433 МГц и предназначена для использовании с LPD станциями и телеметрическими модемами. LA-446 &#8211; для работы с PMR станциями. LA-CDMA &#8211; для передачи данных в сетях CDMA.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Модели &laquo;LA&raquo; имеют низкопрофильную конструкцию, их высота не превышает 80 мм, и они защищены прочным чехлом из ABS-пластика. Это обеспечивает повышенные аэродинамические характеристики и дополнительную электробезопасность антенны. Конструкция заземлена по постоянному току.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Модификации антенны позволяют перекрыть паспортный диапазон от 350 до 500 МГц с полосой порядка 4,5% от центральной по уровню КСВ не хуже 1,5. Параметры антенны гарантируются при ее размещении на металлической поверхности с размером не менее 1х1 метр.</div>
<p>Антенны локомотивные новой линейки моделей &laquo;LA&raquo; предназначены для эксплуатации в системах связи на железнодорожном транспорте в диапазоне 405-470 МГц. Однако, удачная конструкция и схемотехническое решение позволяют существенно расширить область ее использования. Антенна может применяться как на других видах транспорта, так и на стационарных объектах. Оборудование стандарта TETRA, работающее в этом диапазоне, а также система передачи данных может иметь в своем составе эти мобильные антенны.</p>
<p>Антенна LA-433 представляет собой модификацию антенны LA-UHF, настроенную на центральную частоту 433 МГц и предназначена для использовании с LPD станциями и телеметрическими модемами. LA-446 &#8211; для работы с PMR станциями. LA-CDMA &#8211; для передачи данных в сетях CDMA.</p>
<p>Модели &laquo;LA&raquo; имеют низкопрофильную конструкцию, их высота не превышает 80 мм, и они защищены прочным чехлом из ABS-пластика. Это обеспечивает повышенные аэродинамические характеристики и дополнительную электробезопасность антенны. Конструкция заземлена по постоянному току.</p>
<p>Модификации антенны позволяют перекрыть паспортный диапазон от 350 до 500 МГц с полосой порядка 4,5% от центральной по уровню КСВ не хуже 1,5. Параметры антенны гарантируются при ее размещении на металлической поверхности с размером не менее 1х1 метр.</p>
<table style="border-collapse: collapse; width: 688pt;" border="0" cellspacing="0" cellpadding="0" width="918">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 14006; width: 287pt;" width="383"></col>
<col style="mso-width-source: userset; mso-width-alt: 6838; width: 140pt;" width="187"></col>
<col style="mso-width-source: userset; mso-width-alt: 4242; width: 87pt;" span="3" width="116"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl70" style="height: 15.0pt; width: 688pt;" colspan="5" width="918" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 287pt;" width="383" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 140pt; margin-right: 0px;" width="187">LA-UHF</td>
<td class="xl69" style="border-top: none; border-left: none; width: 87pt; margin-right: 0px;" width="116">LA-443</td>
<td class="xl69" style="border-top: none; border-left: none; width: 87pt; margin-right: 0px;" width="116">LA-446</td>
<td class="xl69" style="border-top: none; border-left: none; width: 87pt; margin-right: 0px;" width="116">LA-CDMA</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl76" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">400-490   (общий перестройки)</td>
<td class="xl74" style="border-top: none; border-left: none; width: 87pt; margin-right: 0px;" width="116">428-438</td>
<td class="xl74" style="border-top: none; border-left: none; width: 87pt; margin-right: 0px;" width="116">440-452</td>
<td class="xl74" style="border-top: none; border-left: none; width: 87pt; margin-right: 0px;" width="116">453-467</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl70" style="border-left: none; width: 401pt; margin-right: 0px;" colspan="4" width="535">1,5</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление OFFSET, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl75" style="border-left: none; width: 401pt; margin-right: 0px;" colspan="4" width="535">2.15</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения в вертикальной плоскости по уровню -3dB</td>
<td class="xl71" style="border-right: .5pt solid black; border-left: none; width: 401pt; margin-right: 0px;" colspan="4" width="535">65°</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl70" style="border-left: none; width: 401pt; margin-right: 0px;" colspan="4" width="535">50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl70" style="border-left: none; width: 401pt; margin-right: 0px;" colspan="4" width="535">100</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Заземление</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">на   корпус локомотива</td>
<td class="xl70" style="border-left: none; width: 261pt; margin-right: 0px;" colspan="3" width="348">на корпус локомотива или металлическую поверхность</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 486pt;" border="0" cellspacing="0" cellpadding="0" width="647">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 15835; width: 325pt;" width="433"></col>
<col style="mso-width-source: userset; mso-width-alt: 1938; width: 40pt;" width="53"></col>
<col style="mso-width-source: userset; mso-width-alt: 1755; width: 36pt;" span="2" width="48"></col>
<col style="mso-width-source: userset; mso-width-alt: 2377; width: 49pt;" width="65"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; width: 486pt;" colspan="5" width="647" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; width: 325pt;" width="433" height="20">Модель</td>
<td class="xl68" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">LA-UHF</td>
<td class="xl68" style="border-top: none; border-left: none; width: 36pt; margin-right: 0px;" width="48">LA-433</td>
<td class="xl68" style="border-top: none; border-left: none; width: 36pt; margin-right: 0px;" width="48">LA-446</td>
<td class="xl68" style="border-top: none; border-left: none; width: 49pt; margin-right: 0px;" width="65">LA-CDMA</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Масса, кг</td>
<td class="xl69" style="border-left: none; width: 161pt; margin-right: 0px;" colspan="4" width="214">не более 1</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Высота в сборе, мм</td>
<td class="xl69" style="border-left: none; width: 161pt; margin-right: 0px;" colspan="4" width="214">80</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал антенны/излучателя</td>
<td class="xl69" style="border-left: none; width: 161pt; margin-right: 0px;" colspan="4" width="214">АД-31</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал РПУ</td>
<td class="xl69" style="border-left: none; width: 161pt; margin-right: 0px;" colspan="4" width="214">серый ABS-пластик</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl73" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Способ крепления</td>
<td class="xl69" style="border-left: none; width: 161pt; margin-right: 0px;" colspan="4" width="214">на горизонт.металл. поверхность</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра, м/с</td>
<td class="xl69" style="border-left: none; width: 161pt; margin-right: 0px;" colspan="4" width="214">55</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Площадь ветрового сопротивления, м<span class="font5"><sup>2</sup></span></td>
<td class="xl69" style="border-left: none; width: 161pt; margin-right: 0px;" colspan="4" width="214">0,008</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/с</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; width: 161pt; margin-right: 0px;" colspan="4" width="214">42</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диапазон рабочих температур, °С</td>
<td class="xl69" style="border-left: none; width: 161pt; margin-right: 0px;" colspan="4" width="214">от -50 до +50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl69" style="border-left: none; width: 161pt; margin-right: 0px;" colspan="4" width="214">N-мама</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 347pt;" border="0" cellspacing="0" cellpadding="0" width="462">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 16896; width: 347pt;" width="462"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 347pt; text-align: center;" width="462" height="20"><strong>Типовой   график КСВ антенн &laquo;LA&raquo;</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/LA-UHF_SWR.jpg"><img class="aligncenter size-full wp-image-20349" title="LA-UHF_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/LA-UHF_SWR.jpg" alt="LA-UHF_SWR" width="220" height="120" /></a></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; width: 347pt; margin-right: 0px; text-align: center;" width="462" height="20"><strong>Диаграмма направленности антенн &laquo;LA&raquo;   в горизонтальной плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/LA-UHF_DE.jpg"><img class="aligncenter size-full wp-image-20350" title="LA-UHF_DE" src="http://www.radiopro.ru/next/wp-content/uploads/LA-UHF_DE.jpg" alt="LA-UHF_DE" width="250" height="228" /></a></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>Диаграмма направленности антенн &laquo;LA&raquo; в вертикальной плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/LA-UHF_DH.gif"><img class="aligncenter size-full wp-image-20351" title="LA-UHF_DH" src="http://www.radiopro.ru/next/wp-content/uploads/LA-UHF_DH.gif" alt="LA-UHF_DH" width="220" height="200" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20345</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial PA-450</title>
		<link>http://www.radiopro.ru/?p=20342</link>
		<comments>http://www.radiopro.ru/?p=20342#comments</comments>
		<pubDate>Wed, 02 Jan 2019 07:43:27 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Локомотивные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20342</guid>
		<description><![CDATA[Цельнометаллическая, локомотивная антенна круговой направленности UHF диапазона 450-470 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/PA-420.jpg"><img class="alignright size-medium wp-image-20335" title="PA-420" src="http://www.radiopro.ru/next/wp-content/uploads/PA-420-194x300.jpg" alt="PA-420" width="194" height="300" /></a>Антенны локомотивные РА-420, РА-450 предназначены для эксплуатации в системах связи на железнодорожном транспорте в диапазоне 405-470 МГц. Оборудование стандарта TETRA, работающее в этом диапазоне, а также система передачи данных может иметь в своем составе эти мобильные антенны. Модели РА-420 и РА-450 являются цельнометаллическими ¼-волновыми петлевыми вибраторами. Их конструкция обеспечивает прямое заземление и защиту от поражения электрическим током.</p>
<table border="0" cellspacing="0" cellpadding="0" width="541">
<colgroup>
<col width="383"></col>
<col span="2" width="79"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="541" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="383" height="20">Модель</td>
<td width="79">РА-420</td>
<td width="79">PA-450</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>405-445</td>
<td width="79">450-470</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td colspan="2" width="158">1,5</td>
</tr>
<tr height="20">
<td height="20">Усиление OFFSET, dBd</td>
<td colspan="2" width="158">0</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в вертикальной плоскости по уровню -3dB</td>
<td colspan="2" width="158">65°</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td colspan="2" width="158">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td colspan="2" width="158">300</td>
</tr>
<tr height="20">
<td height="20">Заземление</td>
<td colspan="2" width="158">на корпус локомотива</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="645">
<colgroup>
<col width="433"></col>
<col span="2" width="106"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="645" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="433" height="20">Модель</td>
<td width="106">РА-420</td>
<td width="106">PA-450</td>
</tr>
<tr height="20">
<td height="20">Масса, кг</td>
<td colspan="2" width="212">0,8</td>
</tr>
<tr height="20">
<td height="20">Высота в сборе, мм</td>
<td colspan="2" width="212">190</td>
</tr>
<tr height="20">
<td height="20">Материал антенны</td>
<td colspan="2" width="212">АД-31</td>
</tr>
<tr height="20">
<td height="20">Способ крепления</td>
<td colspan="2" width="212">на горизонт.металл. поверхность</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра, м/с</td>
<td colspan="2" width="212">55</td>
</tr>
<tr height="20">
<td height="20">Площадь ветрового сопротивления, м<sup>2</sup></td>
<td colspan="2" width="212">0,006</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/с</td>
<td colspan="2" width="212">42</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td colspan="2" width="212">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td colspan="2" width="212">N-мама</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="282">
<colgroup>
<col width="282"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="282" height="20"><strong>Диаграмма   антенны PA-450 в Е-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/PA-420_DE.gif"><img class="aligncenter size-full wp-image-20338" title="PA-420_DE" src="http://www.radiopro.ru/next/wp-content/uploads/PA-420_DE.gif" alt="PA-420_DE" width="220" height="113" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Диаграмма антенны PA-450 в H-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/PA-420_DH.jpg"><img class="aligncenter size-full wp-image-20339" title="PA-420_DH" src="http://www.radiopro.ru/next/wp-content/uploads/PA-420_DH.jpg" alt="PA-420_DH" width="250" height="228" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>График КСВ антенны PA-450</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/PA-420_SWR.gif"><img class="aligncenter size-full wp-image-20340" title="PA-420_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/PA-420_SWR.gif" alt="PA-420_SWR" width="220" height="121" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20342</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial PA-420</title>
		<link>http://www.radiopro.ru/?p=20333</link>
		<comments>http://www.radiopro.ru/?p=20333#comments</comments>
		<pubDate>Wed, 02 Jan 2019 07:38:06 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Локомотивные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20333</guid>
		<description><![CDATA[Цельнометаллическая, локомотивная антенна круговой направленности UHF диапазона 405-445 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/PA-420.jpg"><img class="alignright size-medium wp-image-20335" title="PA-420" src="http://www.radiopro.ru/next/wp-content/uploads/PA-420-194x300.jpg" alt="PA-420" width="194" height="300" /></a>Антенны локомотивные РА-420, РА-450 предназначены для эксплуатации в системах связи на железнодорожном транспорте в диапазоне 405-470 МГц. Оборудование стандарта TETRA, работающее в этом диапазоне, а также система передачи данных может иметь в своем составе эти мобильные антенны. Модели РА-420 и РА-450 являются цельнометаллическими ¼-волновыми петлевыми вибраторами. Их конструкция обеспечивает прямое заземление и защиту от поражения электрическим током.</p>
<table border="0" cellspacing="0" cellpadding="0" width="541">
<colgroup>
<col width="383"></col>
<col span="2" width="79"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="541" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="383" height="20">Модель</td>
<td width="79">РА-420</td>
<td width="79">PA-450</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>405-445</td>
<td width="79">450-470</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td colspan="2" width="158">1,5</td>
</tr>
<tr height="20">
<td height="20">Усиление OFFSET, dBd</td>
<td colspan="2" width="158">0</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в вертикальной плоскости по уровню -3dB</td>
<td colspan="2" width="158">65°</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td colspan="2" width="158">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td colspan="2" width="158">300</td>
</tr>
<tr height="20">
<td height="20">Заземление</td>
<td colspan="2" width="158">на корпус локомотива</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="645">
<colgroup>
<col width="433"></col>
<col span="2" width="106"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="645" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="433" height="20">Модель</td>
<td width="106">РА-420</td>
<td width="106">PA-450</td>
</tr>
<tr height="20">
<td height="20">Масса, кг</td>
<td colspan="2" width="212">0,8</td>
</tr>
<tr height="20">
<td height="20">Высота в сборе, мм</td>
<td colspan="2" width="212">190</td>
</tr>
<tr height="20">
<td height="20">Материал антенны</td>
<td colspan="2" width="212">АД-31</td>
</tr>
<tr height="20">
<td height="20">Способ крепления</td>
<td colspan="2" width="212">на горизонт.металл. поверхность</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра, м/с</td>
<td colspan="2" width="212">55</td>
</tr>
<tr height="20">
<td height="20">Площадь ветрового сопротивления, м<sup>2</sup></td>
<td colspan="2" width="212">0,006</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/с</td>
<td colspan="2" width="212">42</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td colspan="2" width="212">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td colspan="2" width="212">N-мама</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="282">
<colgroup>
<col width="282"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="282" height="20"><strong>Диаграмма   антенны PA-420 в Е-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/PA-420_DE.gif"><img class="aligncenter size-full wp-image-20338" title="PA-420_DE" src="http://www.radiopro.ru/next/wp-content/uploads/PA-420_DE.gif" alt="PA-420_DE" width="220" height="113" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>Диаграмма антенны PA-420 в H-плоскости</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/PA-420_DH.jpg"><img class="aligncenter size-full wp-image-20339" title="PA-420_DH" src="http://www.radiopro.ru/next/wp-content/uploads/PA-420_DH.jpg" alt="PA-420_DH" width="250" height="228" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><strong>График КСВ антенны PA-420</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/PA-420_SWR.gif"><img class="aligncenter size-full wp-image-20340" title="PA-420_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/PA-420_SWR.gif" alt="PA-420_SWR" width="220" height="121" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20333</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial LA-156</title>
		<link>http://www.radiopro.ru/?p=20322</link>
		<comments>http://www.radiopro.ru/?p=20322#comments</comments>
		<pubDate>Mon, 31 Dec 2018 03:56:25 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Локомотивные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20322</guid>
		<description><![CDATA[Цельнометаллическая, низкопрофильная, локомотивная антенна круговой направленности VHF диапазона 144-163 МГц.]]></description>
			<content:encoded><![CDATA[<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Локомотивная антенна РА-156 с полным заземлением за счет цельнометаллической конструкции гарантирует безопасность машинисту-оператору и аппаратуре. Антенна имеет высокую эффективность при различной дальности связи. Антенна РА-156 устанавливается непосредственно на крыше локомотива через 4 крепежных отверстия диаметром 8 мм.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Антенна РА-153 устанавливается строго на КМЧ.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Широкая рабочая полоса антенны РА-156 допускает работу радиостанций на любой частоте, выделенной МПС.</div>
<p><a href="http://www.radiopro.ru/next/wp-content/uploads/LA-156.gif"><img class="alignright size-full wp-image-20323" title="LA-156" src="http://www.radiopro.ru/next/wp-content/uploads/LA-156.gif" alt="LA-156" width="150" height="182" /></a>Локомотивная антенна LА-156 с полным заземлением за счет цельнометаллической конструкции гарантирует безопасность машинисту-оператору и аппаратуре. Антенна имеет высокую эффективность при различной дальности связи. Антенна LА-156 устанавливается непосредственно на крыше локомотива через 4 крепежных отверстия диаметром 8 мм.</p>
<p>Широкая рабочая полоса антенны LА-156 допускает работу радиостанций на любой частоте, выделенной МПС.</p>
<table style="border-collapse: collapse; width: 289pt;" border="0" cellspacing="0" cellpadding="0" width="385">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 7862; width: 161pt;" width="215"></col>
<col style="mso-width-source: userset; mso-width-alt: 2340; width: 48pt;" width="64"></col>
<col style="mso-width-source: userset; mso-width-alt: 1938; width: 40pt;" span="2" width="53"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl71" style="height: 15.0pt; width: 289pt;" colspan="4" width="385" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 161pt;" width="215" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 48pt; margin-right: 0px;" width="64">PA-153</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">PA-156</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">LA-156</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">148,5-157</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">154-164</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">144-163</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl70" style="border-top: none; border-left: none; margin-right: 0px;">1.5</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">1,5</td>
<td class="xl72" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">1.5</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление OFFSET, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl73" style="border-top: none; border-left: none; margin-right: 0px;">2.15</td>
<td class="xl74" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">2.15</td>
<td class="xl74" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">2.15</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения в вертикальной</td>
<td class="xl68" style="border-top: none; margin-right: 0px;" rowspan="2">65°</td>
<td class="xl69" style="border-top: none; width: 40pt; margin-right: 0px;" rowspan="2" width="53">65°</td>
<td class="xl69" style="border-top: none; width: 40pt; margin-right: 0px;" rowspan="2" width="53">65°</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none;" height="20">плоскости по   уровню -3dB</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">50</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">50</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">50</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">300</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">300</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">300</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Заземление</td>
<td class="xl75" style="border-right: .5pt solid black; border-left: none; width: 128pt; margin-right: 0px;" colspan="3" width="170">на корпус локомотива</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 557pt;" border="0" cellspacing="0" cellpadding="0" width="743">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 15835; width: 325pt;" width="433"></col>
<col style="mso-width-source: userset; mso-width-alt: 3510; width: 72pt;" width="96"></col>
<col style="mso-width-source: userset; mso-width-alt: 3913; width: 80pt;" span="2" width="107"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; width: 557pt;" colspan="4" width="743" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; width: 325pt;" width="433" height="20">Модель</td>
<td class="xl68" style="border-top: none; border-left: none; width: 72pt; margin-right: 0px;" width="96">PA-153</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">PA-156</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">LA-156</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Масса, кг</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">0,8</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">0.6</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">0.9</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Высота в сборе, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">545</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">500</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">215</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал антенны</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; margin-right: 0px;" colspan="3">АД-31</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Способ крепления</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">строго   на КМЧ</td>
<td class="xl69" style="border-left: none; width: 160pt; margin-right: 0px;" colspan="2" width="214">на горизонт.металл. поверхность</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра, м/с</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; margin-right: 0px;" colspan="3">55</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Площадь ветрового сопротивления, м<span class="font5"><sup>2</sup></span></td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">0,022</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">0,02</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">0.016</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/с</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; margin-right: 0px;" colspan="3">42</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диапазон рабочих температур, °С</td>
<td class="xl69" style="border-left: none; width: 232pt; margin-right: 0px;" colspan="3" width="310">от -50 до +50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; margin-right: 0px;" colspan="3">N-мама</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 225pt;" border="0" cellspacing="0" cellpadding="0" width="300">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 10971; width: 225pt;" width="300"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 225pt; text-align: center;" width="300" height="20"><strong>Диаграмма   антенн &laquo;PA&raquo; и &laquo;LA&raquo; в Е-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/РА-153_DE1.gif"><img class="aligncenter size-full wp-image-20318" title="РА-153_DE" src="http://www.radiopro.ru/next/wp-content/uploads/РА-153_DE1.gif" alt="РА-153_DE" width="220" height="111" /></a></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>Диаграмма антенн &laquo;PA&raquo; и &laquo;LA&raquo; в H-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/РА-153_DH1.jpg"><img class="aligncenter size-full wp-image-20319" title="РА-153_DH" src="http://www.radiopro.ru/next/wp-content/uploads/РА-153_DH1.jpg" alt="РА-153_DH" width="250" height="228" /></a></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>График КСВ антенны LA-156</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/LA-156_SWR.jpg"><img class="aligncenter size-full wp-image-20324" title="LA-156_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/LA-156_SWR.jpg" alt="LA-156_SWR" width="220" height="111" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20322</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial РА-156</title>
		<link>http://www.radiopro.ru/?p=20314</link>
		<comments>http://www.radiopro.ru/?p=20314#comments</comments>
		<pubDate>Mon, 31 Dec 2018 03:48:52 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Локомотивные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20314</guid>
		<description><![CDATA[Цельнометаллическая, локомотивная антенна круговой направленности VHF диапазона 154-164 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/РА-156.gif"><img class="alignright size-full wp-image-20315" title="РА-156" src="http://www.radiopro.ru/next/wp-content/uploads/РА-156.gif" alt="РА-156" width="142" height="198" /></a></p>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Локомотивная антенна РА-156 с полным заземлением за счет цельнометаллической конструкции гарантирует безопасность машинисту-оператору и аппаратуре. Антенна имеет высокую эффективность при различной дальности связи. Антенна РА-156 устанавливается непосредственно на крыше локомотива через 4 крепежных отверстия диаметром 8 мм.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Антенна РА-153 устанавливается строго на КМЧ.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Широкая рабочая полоса антенны РА-156 допускает работу радиостанций на любой частоте, выделенной МПС.</div>
<p>Локомотивная антенна РА-156 с полным заземлением за счет цельнометаллической конструкции гарантирует безопасность машинисту-оператору и аппаратуре. Антенна имеет высокую эффективность при различной дальности связи. Антенна РА-156 устанавливается непосредственно на крыше локомотива через 4 крепежных отверстия диаметром 8 мм.</p>
<p>Широкая рабочая полоса антенны РА-156 допускает работу радиостанций на любой частоте, выделенной МПС.</p>
<table style="border-collapse: collapse; width: 289pt;" border="0" cellspacing="0" cellpadding="0" width="385">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 7862; width: 161pt;" width="215"></col>
<col style="mso-width-source: userset; mso-width-alt: 2340; width: 48pt;" width="64"></col>
<col style="mso-width-source: userset; mso-width-alt: 1938; width: 40pt;" span="2" width="53"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl71" style="height: 15.0pt; width: 289pt;" colspan="4" width="385" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 161pt;" width="215" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 48pt; margin-right: 0px;" width="64">PA-153</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">PA-156</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">LA-156</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">148,5-157</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">154-164</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">144-163</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl70" style="border-top: none; border-left: none; margin-right: 0px;">1.5</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">1,5</td>
<td class="xl72" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">1.5</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление OFFSET, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl73" style="border-top: none; border-left: none; margin-right: 0px;">2.15</td>
<td class="xl74" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">2.15</td>
<td class="xl74" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">2.15</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения в вертикальной</td>
<td class="xl68" style="border-top: none; margin-right: 0px;" rowspan="2">65°</td>
<td class="xl69" style="border-top: none; width: 40pt; margin-right: 0px;" rowspan="2" width="53">65°</td>
<td class="xl69" style="border-top: none; width: 40pt; margin-right: 0px;" rowspan="2" width="53">65°</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none;" height="20">плоскости по   уровню -3dB</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">50</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">50</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">50</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">300</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">300</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">300</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Заземление</td>
<td class="xl75" style="border-right: .5pt solid black; border-left: none; width: 128pt; margin-right: 0px;" colspan="3" width="170">на корпус локомотива</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 557pt;" border="0" cellspacing="0" cellpadding="0" width="743">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 15835; width: 325pt;" width="433"></col>
<col style="mso-width-source: userset; mso-width-alt: 3510; width: 72pt;" width="96"></col>
<col style="mso-width-source: userset; mso-width-alt: 3913; width: 80pt;" span="2" width="107"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; width: 557pt;" colspan="4" width="743" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; width: 325pt;" width="433" height="20">Модель</td>
<td class="xl68" style="border-top: none; border-left: none; width: 72pt; margin-right: 0px;" width="96">PA-153</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">PA-156</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">LA-156</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Масса, кг</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">0,8</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">0.6</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">0.9</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Высота в сборе, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">545</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">500</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">215</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал антенны</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; margin-right: 0px;" colspan="3">АД-31</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Способ крепления</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">строго   на КМЧ</td>
<td class="xl69" style="border-left: none; width: 160pt; margin-right: 0px;" colspan="2" width="214">на горизонт.металл. поверхность</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра, м/с</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; margin-right: 0px;" colspan="3">55</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Площадь ветрового сопротивления, м<span class="font5"><sup>2</sup></span></td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">0,022</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">0,02</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">0.016</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/с</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; margin-right: 0px;" colspan="3">42</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диапазон рабочих температур, °С</td>
<td class="xl69" style="border-left: none; width: 232pt; margin-right: 0px;" colspan="3" width="310">от -50 до +50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; margin-right: 0px;" colspan="3">N-мама</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 225pt;" border="0" cellspacing="0" cellpadding="0" width="300">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 10971; width: 225pt;" width="300"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 225pt; text-align: center;" width="300" height="20"><strong>Диаграмма   антенн &laquo;PA&raquo; и &laquo;LA&raquo; в Е-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/РА-153_DE1.gif"><img class="aligncenter size-full wp-image-20318" title="РА-153_DE" src="http://www.radiopro.ru/next/wp-content/uploads/РА-153_DE1.gif" alt="РА-153_DE" width="220" height="111" /></a></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>Диаграмма антенн &laquo;PA&raquo; и &laquo;LA&raquo; в H-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/РА-153_DH1.jpg"><img class="aligncenter size-full wp-image-20319" title="РА-153_DH" src="http://www.radiopro.ru/next/wp-content/uploads/РА-153_DH1.jpg" alt="РА-153_DH" width="250" height="228" /></a></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>График КСВ антенны PA-156</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/РА-156_SWR.gif"><img class="aligncenter size-full wp-image-20317" title="РА-156_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/РА-156_SWR.gif" alt="РА-156_SWR" width="220" height="121" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20314</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial РА-153</title>
		<link>http://www.radiopro.ru/?p=20304</link>
		<comments>http://www.radiopro.ru/?p=20304#comments</comments>
		<pubDate>Mon, 31 Dec 2018 03:40:52 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Локомотивные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20304</guid>
		<description><![CDATA[Цельнометаллическая, локомотивная антенна круговой направленности VHF диапазона 148,5-157 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/РА-1531.jpg"><img class="alignright size-full wp-image-20306" title="РА-153" src="http://www.radiopro.ru/next/wp-content/uploads/РА-1531.jpg" alt="РА-153" width="105" height="200" /></a></p>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Локомотивная антенна РА-156 с полным заземлением за счет цельнометаллической конструкции гарантирует безопасность машинисту-оператору и аппаратуре. Антенна имеет высокую эффективность при различной дальности связи. Антенна РА-156 устанавливается непосредственно на крыше локомотива через 4 крепежных отверстия диаметром 8 мм.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Антенна РА-153 устанавливается строго на КМЧ.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Широкая рабочая полоса антенны РА-156 допускает работу радиостанций на любой частоте, выделенной МПС.</div>
<p>Локомотивная антенна РА-153 с полным заземлением за счет цельнометаллической конструкции гарантирует безопасность машинисту-оператору и аппаратуре. Антенна имеет высокую эффективность при различной дальности связи. Антенна РА-153 устанавливается строго на КМЧ (в комплект поставки не входит).</p>
<p>Широкая рабочая полоса антенны РА-153 допускает работу радиостанций на любой частоте, выделенной МПС. <a href="http://www.radiopro.ru/next/wp-content/uploads/РА-153_SC.png"></a></p>
<table style="border-collapse: collapse; width: 289pt;" border="0" cellspacing="0" cellpadding="0" width="385">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 7862; width: 161pt;" width="215"></col>
<col style="mso-width-source: userset; mso-width-alt: 2340; width: 48pt;" width="64"></col>
<col style="mso-width-source: userset; mso-width-alt: 1938; width: 40pt;" span="2" width="53"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl71" style="height: 15.0pt; width: 289pt;" colspan="4" width="385" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 161pt;" width="215" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 48pt; margin-right: 0px;" width="64">PA-153</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">PA-156</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">LA-156</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">148,5-157</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">154-164</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">144-163</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl70" style="border-top: none; border-left: none; margin-right: 0px;">1,5</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">1,5</td>
<td class="xl72" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">1,5</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление OFFSET, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl73" style="border-top: none; border-left: none; margin-right: 0px;">2.15</td>
<td class="xl74" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">2.15</td>
<td class="xl74" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">2.15</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения в вертикальной</td>
<td class="xl68" style="border-top: none; margin-right: 0px;" rowspan="2">65°</td>
<td class="xl69" style="border-top: none; width: 40pt; margin-right: 0px;" rowspan="2" width="53">65°</td>
<td class="xl69" style="border-top: none; width: 40pt; margin-right: 0px;" rowspan="2" width="53">65°</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none;" height="20">плоскости по   уровню -3dB</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">50</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">50</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">50</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">300</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">300</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">300</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Заземление</td>
<td class="xl75" style="border-right: .5pt solid black; border-left: none; width: 128pt; margin-right: 0px;" colspan="3" width="170">на корпус локомотива</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 557pt;" border="0" cellspacing="0" cellpadding="0" width="743">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 15835; width: 325pt;" width="433"></col>
<col style="mso-width-source: userset; mso-width-alt: 3510; width: 72pt;" width="96"></col>
<col style="mso-width-source: userset; mso-width-alt: 3913; width: 80pt;" span="2" width="107"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; width: 557pt;" colspan="4" width="743" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; width: 325pt;" width="433" height="20">Модель</td>
<td class="xl68" style="border-top: none; border-left: none; width: 72pt; margin-right: 0px;" width="96">PA-153</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">PA-156</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">LA-156</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Масса, кг</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">0,8</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">0.6</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">0.9</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Высота в сборе, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">545</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">500</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">215</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал антенны</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; margin-right: 0px;" colspan="3">АД-31</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Способ крепления</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">строго   на КМЧ</td>
<td class="xl69" style="border-left: none; width: 160pt; margin-right: 0px;" colspan="2" width="214">на горизонт.металл. поверхность</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра, м/с</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; margin-right: 0px;" colspan="3">55</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Площадь ветрового сопротивления, м<span class="font5"><sup>2</sup></span></td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">0,022</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">0,02</td>
<td class="xl68" style="border-top: none; border-left: none; width: 80pt; margin-right: 0px;" width="107">0.016</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/с</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; margin-right: 0px;" colspan="3">42</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диапазон рабочих температур, °С</td>
<td class="xl69" style="border-left: none; width: 232pt; margin-right: 0px;" colspan="3" width="310">от -50 до +50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; margin-right: 0px;" colspan="3">N-мама</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 225pt;" border="0" cellspacing="0" cellpadding="0" width="300">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 10971; width: 225pt;" width="300"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 225pt; text-align: center;" width="300" height="20"><strong>Диаграмма   антенн &laquo;PA&raquo; и &laquo;LA&raquo; в Е-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/РА-153_DE.gif"><img class="aligncenter size-full wp-image-20310" title="РА-153_DE" src="http://www.radiopro.ru/next/wp-content/uploads/РА-153_DE.gif" alt="РА-153_DE" width="220" height="111" /></a></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>Диаграмма антенн &laquo;PA&raquo; и &laquo;LA&raquo; в H-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/РА-153_DH.jpg"><img class="aligncenter size-full wp-image-20311" title="РА-153_DH" src="http://www.radiopro.ru/next/wp-content/uploads/РА-153_DH.jpg" alt="РА-153_DH" width="250" height="228" /></a></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>График КСВ антенны PA-153</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/РА-153_SWR.gif"><img class="aligncenter size-full wp-image-20312" title="РА-153_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/РА-153_SWR.gif" alt="РА-153_SWR" width="220" height="127" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20304</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial LPA-UHF</title>
		<link>http://www.radiopro.ru/?p=20296</link>
		<comments>http://www.radiopro.ru/?p=20296#comments</comments>
		<pubDate>Sun, 30 Dec 2018 22:01:24 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Направленные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20296</guid>
		<description><![CDATA[Профессиональная, широкополосная, направленная логопериодическая абонентская антенна УКВ диапазона 360-520 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/LPA-UHF.jpg"><img class="alignright size-medium wp-image-20297" title="LPA-UHF" src="http://www.radiopro.ru/next/wp-content/uploads/LPA-UHF-300x219.jpg" alt="LPA-UHF" width="300" height="219" /></a></p>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Учитывая особенности частотных распределений в нашей стране, а именно выделение под радиорелейную связь участков 394-410…. 434-450, инженеры нашей компании разработали по просьбе производителей активного оборудования антенны, специализированные под этот частотный диапазон.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Конструктивно это логопериодические антенны. Их диаграммы направленности оптимизированы на компьютере и измерены на нашем антенном полигоне. Согласование также адаптировано под участки приёма и передачи. Высокое усиление позволяет строить эффективные линии радио-связи при малых мощностях передатчиков, а также использовать эти антенны в качестве элементов антенных решёток для пассивных ретрансляторов.</div>
<p>Учитывая особенности частотных распределений в нашей стране, а именно выделение под радиорелейную связь участков 394-410…. 434-450, инженеры нашей компании разработали по просьбе производителей активного оборудования антенны, специализированные под этот частотный диапазон.</p>
<p>Конструктивно это логопериодические антенны. Их диаграммы направленности оптимизированы на компьютере и измерены на нашем антенном полигоне. Согласование также адаптировано под участки приёма и передачи. Высокое усиление позволяет строить эффективные линии радио-связи при малых мощностях передатчиков, а также использовать эти антенны в качестве элементов антенных решёток для пассивных ретрансляторов.</p>
<table style="border-collapse: collapse; width: 350pt;" border="0" cellspacing="0" cellpadding="0" width="467">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 14006; width: 287pt;" width="383"></col>
<col style="mso-width-source: userset; mso-width-alt: 3072; width: 63pt;" width="84"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl70" style="height: 15.0pt; width: 350pt;" colspan="2" width="467" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 287pt;" width="383" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 63pt; margin-right: 0px;" width="84">LPA &#8211; UHF</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">360-520</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочая полоса, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">150</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl71" style="border-top: none; border-left: none; margin-right: 0px;">1.5</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">12</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения в вертикальной плоскости по уровню -3dB</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">44</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">50</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">70</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Грозозащита</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">нет</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Настройка</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">не   требуется</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 171pt;" border="0" cellspacing="0" cellpadding="0" width="228">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 5266; width: 108pt;" width="144"></col>
<col style="mso-width-source: userset; mso-width-alt: 3072; width: 63pt;" width="84"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; width: 171pt;" colspan="2" width="228" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; width: 108pt;" width="144" height="20">Модель</td>
<td class="xl68" style="border-top: none; border-left: none; width: 63pt; margin-right: 0px;" width="84">LPA &#8211; UHF</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Габариты антенны, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">1600х380х40</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диаметр мачты, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">35-55</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал антенны</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">АД-31</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Крепление</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">СР-55D</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">N-мама</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 437pt;" border="0" cellspacing="0" cellpadding="0" width="582">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 10605; width: 218pt;" width="290"></col>
<col style="mso-width-source: userset; mso-width-alt: 10678; width: 219pt;" width="292"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 218pt; text-align: center;" width="290" height="20"><strong>Диаграмма   антенны LPA-UHF в Е-плоскости</strong></td>
<td class="xl67" style="border-left: none; width: 219pt; text-align: center;" width="292"><strong>Диаграмма   антенны LPA-UHF в H-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/LPA-UHF_DE.jpg"><img class="aligncenter size-full wp-image-20299" title="LPA-UHF_DE" src="http://www.radiopro.ru/next/wp-content/uploads/LPA-UHF_DE.jpg" alt="LPA-UHF_DE" width="300" height="295" /></a></td>
<td class="xl67" style="border-top: none; border-left: none;"><a href="http://www.radiopro.ru/next/wp-content/uploads/LPA-UHF_DH.jpg"><img class="aligncenter size-medium wp-image-20300" title="LPA-UHF_DH" src="http://www.radiopro.ru/next/wp-content/uploads/LPA-UHF_DH-298x300.jpg" alt="LPA-UHF_DH" width="298" height="300" /></a></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; margin-right: 0px; text-align: center;" colspan="2" height="20"><strong>Графики   КСВ антенн LPA-UHF</strong></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl69" style="border-right: 0.5pt solid black; height: 15pt; margin-right: 0px; text-align: center;" colspan="2" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/LPA-UHF_SWR.jpg"><img class="aligncenter size-medium wp-image-20301" title="LPA-UHF_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/LPA-UHF_SWR-300x246.jpg" alt="LPA-UHF_SWR" width="300" height="246" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20296</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial LPA-UAVIA</title>
		<link>http://www.radiopro.ru/?p=20288</link>
		<comments>http://www.radiopro.ru/?p=20288#comments</comments>
		<pubDate>Sun, 30 Dec 2018 21:52:45 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Направленные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20288</guid>
		<description><![CDATA[Профессиональная, широкополосная, направленная логопериодическая абонентская антенна УКВ диапазона 220-455 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/LPA-UAVIA.jpg"><img class="alignright size-medium wp-image-20289" title="LPA-UAVIA" src="http://www.radiopro.ru/next/wp-content/uploads/LPA-UAVIA-300x252.jpg" alt="LPA-UAVIA" width="300" height="252" /></a>Конструктивно LPA-UAVIA логопериодическая антенна. Ее диаграммы направленности оптимизированы на компьютере и измерены на нашем антенном полигоне. Широкополосное согласующее устройство обеспечивает хороший КСВ во всей рабочей полосе. Высокое усиление позволяет строить эффективные линии радиосвязи при малых мощностях передатчиков, а также использовать эти антенны в качестве элементов антенных решёток для пассивных ретрансляторов.</p>
<table border="0" cellspacing="0" cellpadding="0" width="457">
<colgroup>
<col width="262"></col>
<col width="195"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="2" width="457" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="262" height="20">Модель</td>
<td width="195">LPA-UAVIA</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>220-455</td>
</tr>
<tr height="20">
<td height="20">Рабочая полоса, МГц</td>
<td>280</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td>1.5</td>
</tr>
<tr height="20">
<td height="20">Усиление, dBi</td>
<td>9,5</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в Н-плоскости (-3dB)</td>
<td>80°</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения в Е-плоскости (-3 dB)</td>
<td>55°</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td>70</td>
</tr>
<tr height="20">
<td height="20">Грозозащита</td>
<td>Замкнута   по постоянному току</td>
</tr>
<tr height="20">
<td height="20">Поляризация</td>
<td>Вертикальная</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="236">
<colgroup>
<col width="144"></col>
<col width="92"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="2" width="236" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="144" height="20">Модель</td>
<td width="92">LPA-UAVIA</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны, мм</td>
<td>1800х660х120</td>
</tr>
<tr height="20">
<td height="20">Диаметр мачты, мм</td>
<td>35-55</td>
</tr>
<tr height="20">
<td height="20">Материал антенны</td>
<td>Алюминий</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td>N-мама</td>
</tr>
<tr height="20">
<td height="20">Масса, кг</td>
<td>2,3</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="614">
<colgroup>
<col width="306"></col>
<col width="308"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="306" height="20"><strong>Диаграмма   антенны LPA-UAVIA в Е-плоскости</strong></td>
<td style="text-align: center;" width="308"><strong>Диаграмма   антенны LPA-UAVIA в H-плоскости</strong></td>
</tr>
<tr height="20">
<td height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/LPA-UAVIA_DE.jpg"><img class="aligncenter size-medium wp-image-20291" title="LPA-UAVIA_DE" src="http://www.radiopro.ru/next/wp-content/uploads/LPA-UAVIA_DE-300x294.jpg" alt="LPA-UAVIA_DE" width="300" height="294" /></a></td>
<td><a href="http://www.radiopro.ru/next/wp-content/uploads/LPA-UAVIA_DH.jpg"><img class="aligncenter size-medium wp-image-20292" title="LPA-UAVIA_DH" src="http://www.radiopro.ru/next/wp-content/uploads/LPA-UAVIA_DH-300x298.jpg" alt="LPA-UAVIA_DH" width="300" height="298" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" colspan="2" height="20"><strong>Графики   КСВ антенн LPA-UAVIA</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" colspan="2" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/LPA-UAVIA_SWR.PNG"><img class="aligncenter size-medium wp-image-20293" title="LPA-UAVIA_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/LPA-UAVIA_SWR-300x217.PNG" alt="LPA-UAVIA_SWR" width="300" height="217" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20288</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial Y5-446</title>
		<link>http://www.radiopro.ru/?p=20285</link>
		<comments>http://www.radiopro.ru/?p=20285#comments</comments>
		<pubDate>Sun, 30 Dec 2018 21:45:44 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Направленные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20285</guid>
		<description><![CDATA[Антенна «волновой канал» предназначена для использования в качестве абонентской, работающей с дуплексным разносом в 10 МГц UHF диапазона 436-454 МГц, в сетях CDMA, с LPD и с PMR-446 радиостанциями.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA.jpg"><img class="alignright size-full wp-image-20274" title="Y5-CDMA" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA.jpg" alt="Y5-CDMA" width="300" height="215" /></a></p>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Волновые каналы Y5-CDMA, Y5-433, Y5-446 предназначены для использования в качестве абонентских антенн, работающей с дуплексным разносом в 10 МГц, в сетях CDMA, с LPD и с PMR-446 радиостанциями.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Несмотря на кажущуюся простоту конструкции, эта антенна обладает рядом несомненных достоинств: она оптимизирована по усилению и согласованию – КУ в 6 dBd одинаков во всем рабочем диапазоне, цельносварная конструкция из легкого алюминиевого сплава, повышенная долговечность, антенна может комплектоваться 10 метрами кабеля с низкими потерями для удобства непосредственного подключения к абонентским терминалам без дополнительных фидеров и джамперов.</div>
<p>Волновые каналы Y5-CDMA, Y5-433, Y5-446 предназначены для использования в качестве абонентских антенн, работающей с дуплексным разносом в 10 МГц, в сетях CDMA, с LPD и с PMR-446 радиостанциями.</p>
<p>Несмотря на кажущуюся простоту конструкции, эта антенна обладает рядом несомненных достоинств: она оптимизирована по усилению и согласованию – КУ в 6 dBd одинаков во всем рабочем диапазоне, цельносварная конструкция из легкого алюминиевого сплава, повышенная долговечность, антенна может комплектоваться 10 метрами кабеля с низкими потерями для удобства непосредственного подключения к абонентским терминалам без дополнительных фидеров и джамперов.</p>
<table style="border-collapse: collapse; width: 307pt;" border="0" cellspacing="0" cellpadding="0" width="408">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 8667; width: 178pt;" width="237"></col>
<col style="mso-width-source: userset; mso-width-alt: 2377; width: 49pt;" width="65"></col>
<col style="mso-width-source: userset; mso-width-alt: 1938; width: 40pt;" span="2" width="53"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl70" style="height: 15.0pt; width: 307pt;" colspan="4" width="408" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 178pt;" width="237" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 49pt; margin-right: 0px;" width="65">Y5-CDMA</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">Y5-433</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">Y5-446</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">453-467</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">426-440</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">436-454</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">1,5</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление в середине диапазона, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl71" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">8.15</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Отношение перед/назад, dB</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">15</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения по уровню -3dB</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171"></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в Е-плоскости</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">55°</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в Н-плоскости</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">86°</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Поляризация</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">вертикальная</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">50</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 499pt;" border="0" cellspacing="0" cellpadding="0" width="664">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 15835; width: 325pt;" width="433"></col>
<col style="mso-width-source: userset; mso-width-alt: 2816; width: 58pt;" span="3" width="77"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; width: 499pt;" colspan="4" width="664" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; width: 325pt;" width="433" height="20">Модель</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">Y5-CDMA</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">Y5-433</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">Y5-446</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Масса, кг</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">0.65</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Габариты антенны, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">785х320х20</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">760х340х20</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">690х326х20</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал антенны</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">АД-31</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диаметр мачты, мм</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">25-55</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра, м/c</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">45</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Нагрузка при боковом ветре 45 м/c, Н</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">10</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/c</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">28</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диапазон рабочих температур, °С</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">от -50 до +50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">N-мама (TNC, SMA под заказ)</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Возможная дополнительная комплектация</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">кабель 10 м</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Габариты упаковки, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">850х350х50</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">770х355х50</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">765х340х50</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 444pt;" border="0" cellspacing="0" cellpadding="0" width="592">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 10788; width: 221pt;" width="295"></col>
<col style="mso-width-source: userset; mso-width-alt: 10861; width: 223pt;" width="297"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 221pt; text-align: center;" width="295" height="20"><strong>Диаграмма   антенны Y5-446 в Е-плоскости</strong></td>
<td class="xl67" style="border-left: none; width: 223pt; text-align: center;" width="297"><strong>Диаграмма   антенны Y5-446 в H-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_DE.jpg"><img class="aligncenter size-full wp-image-20276" title="Y5-CDMA_DE" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_DE.jpg" alt="Y5-CDMA_DE" width="250" height="129" /></a></td>
<td class="xl67" style="border-top: none; border-left: none;"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_DH.jpg"><img class="aligncenter size-full wp-image-20277" title="Y5-CDMA_DH" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_DH.jpg" alt="Y5-CDMA_DH" width="250" height="129" /></a></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; margin-right: 0px; text-align: center;" colspan="2" height="20"><strong>Графики   КСВ антенн Y5-446</strong></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl69" style="border-right: 0.5pt solid black; height: 15pt; margin-right: 0px; text-align: center;" colspan="2" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_SWR.jpg"><img class="aligncenter size-full wp-image-20278" title="Y5-CDMA_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_SWR.jpg" alt="Y5-CDMA_SWR" width="250" height="129" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20285</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial Y5-433</title>
		<link>http://www.radiopro.ru/?p=20281</link>
		<comments>http://www.radiopro.ru/?p=20281#comments</comments>
		<pubDate>Sun, 30 Dec 2018 21:42:30 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Направленные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20281</guid>
		<description><![CDATA[Антенна «волновой канал» предназначена для использования в качестве абонентской, работающей с дуплексным разносом в 10 МГц UHF диапазона 426-440 МГц, в сетях CDMA, с LPD и с PMR-446 радиостанциями.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA.jpg"><img class="alignright size-full wp-image-20274" title="Y5-CDMA" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA.jpg" alt="Y5-CDMA" width="300" height="215" /></a></p>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Волновые каналы Y5-CDMA, Y5-433, Y5-446 предназначены для использования в качестве абонентских антенн, работающей с дуплексным разносом в 10 МГц, в сетях CDMA, с LPD и с PMR-446 радиостанциями.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Несмотря на кажущуюся простоту конструкции, эта антенна обладает рядом несомненных достоинств: она оптимизирована по усилению и согласованию – КУ в 6 dBd одинаков во всем рабочем диапазоне, цельносварная конструкция из легкого алюминиевого сплава, повышенная долговечность, антенна может комплектоваться 10 метрами кабеля с низкими потерями для удобства непосредственного подключения к абонентским терминалам без дополнительных фидеров и джамперов.</div>
<p>Волновые каналы Y5-CDMA, Y5-433, Y5-446 предназначены для использования в качестве абонентских антенн, работающей с дуплексным разносом в 10 МГц, в сетях CDMA, с LPD и с PMR-446 радиостанциями.</p>
<p>Несмотря на кажущуюся простоту конструкции, эта антенна обладает рядом несомненных достоинств: она оптимизирована по усилению и согласованию – КУ в 6 dBd одинаков во всем рабочем диапазоне, цельносварная конструкция из легкого алюминиевого сплава, повышенная долговечность, антенна может комплектоваться 10 метрами кабеля с низкими потерями для удобства непосредственного подключения к абонентским терминалам без дополнительных фидеров и джамперов.</p>
<table style="border-collapse: collapse; width: 307pt;" border="0" cellspacing="0" cellpadding="0" width="408">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 8667; width: 178pt;" width="237"></col>
<col style="mso-width-source: userset; mso-width-alt: 2377; width: 49pt;" width="65"></col>
<col style="mso-width-source: userset; mso-width-alt: 1938; width: 40pt;" span="2" width="53"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl70" style="height: 15.0pt; width: 307pt;" colspan="4" width="408" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 178pt;" width="237" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 49pt; margin-right: 0px;" width="65">Y5-CDMA</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">Y5-433</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">Y5-446</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">453-467</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">426-440</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">436-454</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">1,5</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление в середине диапазона, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl71" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">8.15</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Отношение перед/назад, dB</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">15</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения по уровню -3dB</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171"></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в Е-плоскости</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">55°</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в Н-плоскости</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">86°</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Поляризация</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">вертикальная</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">50</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 499pt;" border="0" cellspacing="0" cellpadding="0" width="664">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 15835; width: 325pt;" width="433"></col>
<col style="mso-width-source: userset; mso-width-alt: 2816; width: 58pt;" span="3" width="77"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; width: 499pt;" colspan="4" width="664" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; width: 325pt;" width="433" height="20">Модель</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">Y5-CDMA</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">Y5-433</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">Y5-446</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Масса, кг</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">0.65</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Габариты антенны, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">785х320х20</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">760х340х20</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">690х326х20</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал антенны</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">АД-31</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диаметр мачты, мм</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">25-55</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра, м/c</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">45</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Нагрузка при боковом ветре 45 м/c, Н</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">10</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/c</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">28</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диапазон рабочих температур, °С</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">от -50 до +50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">N-мама (TNC, SMA под заказ)</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Возможная дополнительная комплектация</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">кабель 10 м</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Габариты упаковки, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">850х350х50</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">770х355х50</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">765х340х50</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 444pt;" border="0" cellspacing="0" cellpadding="0" width="592">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 10788; width: 221pt;" width="295"></col>
<col style="mso-width-source: userset; mso-width-alt: 10861; width: 223pt;" width="297"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 221pt; text-align: center;" width="295" height="20"><strong>Диаграмма   антенны Y5-433 в Е-плоскости</strong></td>
<td class="xl67" style="border-left: none; width: 223pt; text-align: center;" width="297"><strong>Диаграмма   антенны Y5-433 в H-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_DE.jpg"><img class="aligncenter size-full wp-image-20276" title="Y5-CDMA_DE" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_DE.jpg" alt="Y5-CDMA_DE" width="250" height="129" /></a></td>
<td class="xl67" style="border-top: none; border-left: none;"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_DH.jpg"><img class="aligncenter size-full wp-image-20277" title="Y5-CDMA_DH" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_DH.jpg" alt="Y5-CDMA_DH" width="250" height="129" /></a></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; margin-right: 0px; text-align: center;" colspan="2" height="20"><strong>Графики   КСВ антенн Y5-433</strong></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl69" style="border-right: 0.5pt solid black; height: 15pt; margin-right: 0px; text-align: center;" colspan="2" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_SWR.jpg"><img class="aligncenter size-full wp-image-20278" title="Y5-CDMA_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_SWR.jpg" alt="Y5-CDMA_SWR" width="250" height="129" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20281</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial Y5-CDMA</title>
		<link>http://www.radiopro.ru/?p=20273</link>
		<comments>http://www.radiopro.ru/?p=20273#comments</comments>
		<pubDate>Sun, 30 Dec 2018 21:36:51 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Направленные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20273</guid>
		<description><![CDATA[Антенна "волновой канал" предназначена для использования в качестве абонентской, работающей с дуплексным разносом в 10 МГц UHF диапазона 453-467 МГц, в сетях CDMA, с LPD и с PMR-446 радиостанциями.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA.jpg"><img class="alignright size-full wp-image-20274" title="Y5-CDMA" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA.jpg" alt="Y5-CDMA" width="300" height="215" /></a></p>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Волновые каналы Y5-CDMA, Y5-433, Y5-446 предназначены для использования в качестве абонентских антенн, работающей с дуплексным разносом в 10 МГц, в сетях CDMA, с LPD и с PMR-446 радиостанциями.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Несмотря на кажущуюся простоту конструкции, эта антенна обладает рядом несомненных достоинств: она оптимизирована по усилению и согласованию – КУ в 6 dBd одинаков во всем рабочем диапазоне, цельносварная конструкция из легкого алюминиевого сплава, повышенная долговечность, антенна может комплектоваться 10 метрами кабеля с низкими потерями для удобства непосредственного подключения к абонентским терминалам без дополнительных фидеров и джамперов.</div>
<p>Волновые каналы Y5-CDMA, Y5-433, Y5-446 предназначены для использования в качестве абонентских антенн, работающей с дуплексным разносом в 10 МГц, в сетях CDMA, с LPD и с PMR-446 радиостанциями.</p>
<p>Несмотря на кажущуюся простоту конструкции, эта антенна обладает рядом несомненных достоинств: она оптимизирована по усилению и согласованию – КУ в 6 dBd одинаков во всем рабочем диапазоне, цельносварная конструкция из легкого алюминиевого сплава, повышенная долговечность, антенна может комплектоваться 10 метрами кабеля с низкими потерями для удобства непосредственного подключения к абонентским терминалам без дополнительных фидеров и джамперов.</p>
<table style="border-collapse: collapse; width: 307pt;" border="0" cellspacing="0" cellpadding="0" width="408">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 8667; width: 178pt;" width="237"></col>
<col style="mso-width-source: userset; mso-width-alt: 2377; width: 49pt;" width="65"></col>
<col style="mso-width-source: userset; mso-width-alt: 1938; width: 40pt;" span="2" width="53"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl70" style="height: 15.0pt; width: 307pt;" colspan="4" width="408" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 178pt;" width="237" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 49pt; margin-right: 0px;" width="65">Y5-CDMA</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">Y5-433</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">Y5-446</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">453-467</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">426-440</td>
<td class="xl69" style="border-top: none; border-left: none; width: 40pt; margin-right: 0px;" width="53">436-454</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">1,5</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление в середине диапазона, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl71" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">8.15</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Отношение перед/назад, dB</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">15</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения по уровню -3dB</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171"></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в Е-плоскости</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">55°</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в Н-плоскости</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">86°</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Поляризация</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">вертикальная</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl70" style="border-left: none; width: 129pt; margin-right: 0px;" colspan="3" width="171">50</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 499pt;" border="0" cellspacing="0" cellpadding="0" width="664">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 15835; width: 325pt;" width="433"></col>
<col style="mso-width-source: userset; mso-width-alt: 2816; width: 58pt;" span="3" width="77"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; width: 499pt;" colspan="4" width="664" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; width: 325pt;" width="433" height="20">Модель</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">Y5-CDMA</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">Y5-433</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">Y5-446</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Масса, кг</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">0.65</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Габариты антенны, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">785х320х20</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">760х340х20</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">690х326х20</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал антенны</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">АД-31</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диаметр мачты, мм</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">25-55</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра, м/c</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">45</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Нагрузка при боковом ветре 45 м/c, Н</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">10</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/c</td>
<td class="xl70" style="border-right: .5pt solid black; border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">28</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диапазон рабочих температур, °С</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">от -50 до +50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">N-мама (TNC, SMA под заказ)</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Возможная дополнительная комплектация</td>
<td class="xl69" style="border-left: none; width: 174pt; margin-right: 0px;" colspan="3" width="231">кабель 10 м</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Габариты упаковки, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">850х350х50</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">770х355х50</td>
<td class="xl68" style="border-top: none; border-left: none; width: 58pt; margin-right: 0px;" width="77">765х340х50</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 444pt;" border="0" cellspacing="0" cellpadding="0" width="592">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 10788; width: 221pt;" width="295"></col>
<col style="mso-width-source: userset; mso-width-alt: 10861; width: 223pt;" width="297"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 221pt; text-align: center;" width="295" height="20"><strong>Диаграмма   антенны Y5-CDMA в Е-плоскости</strong></td>
<td class="xl67" style="border-left: none; width: 223pt; text-align: center;" width="297"><strong>Диаграмма   антенны Y5-CDMA в H-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_DE.jpg"><img class="aligncenter size-full wp-image-20276" title="Y5-CDMA_DE" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_DE.jpg" alt="Y5-CDMA_DE" width="250" height="129" /></a></td>
<td class="xl67" style="border-top: none; border-left: none;"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_DH.jpg"><img class="aligncenter size-full wp-image-20277" title="Y5-CDMA_DH" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_DH.jpg" alt="Y5-CDMA_DH" width="250" height="129" /></a></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; margin-right: 0px; text-align: center;" colspan="2" height="20"><strong>Графики   КСВ антенн Y5-CDMA</strong></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl69" style="border-right: 0.5pt solid black; height: 15pt; margin-right: 0px; text-align: center;" colspan="2" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_SWR.jpg"><img class="aligncenter size-full wp-image-20278" title="Y5-CDMA_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-CDMA_SWR.jpg" alt="Y5-CDMA_SWR" width="250" height="129" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20273</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial Y9 UHF</title>
		<link>http://www.radiopro.ru/?p=20265</link>
		<comments>http://www.radiopro.ru/?p=20265#comments</comments>
		<pubDate>Sun, 30 Dec 2018 21:24:18 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Направленные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20265</guid>
		<description><![CDATA[Профессиональная, широкополосная, направленная 9 элементная абонентская антенна UHF диапазона 395-430 и 435-470 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/Y9-UHF.gif"><img class="alignright size-medium wp-image-20266" title="Y9 UHF" src="http://www.radiopro.ru/next/wp-content/uploads/Y9-UHF-300x226.gif" alt="Y9 UHF" width="300" height="226" /></a>Антенна Y9 UHF — это уникальная разработка, включающая в себя высокие требования к усилению при широкой полосе и механической надежности. Такая антенна обеспечит максимально возможную дальность при разрешенных мощностях передатчика за границей прямой видимости. Полимерное покрытие надежно защитит от действия агрессивных сред и обледенения.</p>
<table border="0" cellspacing="0" cellpadding="0" width="375">
<colgroup>
<col width="237"></col>
<col width="68"></col>
<col width="70"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="375" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="237" height="20">Модель</td>
<td width="68">Y9 UHF(L)</td>
<td width="70">Y9 UHF(H)</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>395-430</td>
<td width="70">435-470</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td colspan="2" width="138">1,5</td>
</tr>
<tr height="20">
<td height="20">Усиление в середине диапазона, dBi</td>
<td colspan="2" width="138">13.15</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения по уровню -3dB</td>
<td colspan="2" width="138"></td>
</tr>
<tr height="20">
<td style="text-align: right;" height="20">в вертикальной плоскости</td>
<td colspan="2" width="138">36°</td>
</tr>
<tr height="20">
<td style="text-align: right;" height="20">в горизонтальной плоскости</td>
<td colspan="2" width="138">39°</td>
</tr>
<tr height="20">
<td height="20">Поляризация</td>
<td colspan="2" width="138">вертикальная</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td colspan="2" width="138">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td colspan="2" width="138">400</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="571">
<colgroup>
<col width="433"></col>
<col width="68"></col>
<col width="70"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="571" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="433" height="20">Модель</td>
<td width="68">Y9 UHF(L)</td>
<td width="70">Y9 UHF(H)</td>
</tr>
<tr height="20">
<td height="20">Масса, кг</td>
<td colspan="2" width="138">2,9</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны, мм</td>
<td colspan="2" width="138">1800&#215;360x120</td>
</tr>
<tr height="20">
<td height="20">Материал антенны</td>
<td colspan="2" width="138">АД-31</td>
</tr>
<tr height="20">
<td height="20">Диаметр мачты, мм</td>
<td colspan="2" width="138">38-65</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра, м/c</td>
<td colspan="2" width="138">45</td>
</tr>
<tr height="20">
<td height="20">Площадь ветрового сопротивления, м<sup>2</sup></td>
<td>0,08</td>
<td width="70">0,07</td>
</tr>
<tr height="20">
<td height="20">Нагрузка при боковом ветре 45 м/c, Н</td>
<td>85</td>
<td width="70">75</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/c</td>
<td colspan="2" width="138">28</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td colspan="2" width="138">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td colspan="2" width="138">N-мама</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="560">
<colgroup>
<col width="279"></col>
<col width="281"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="279" height="20"><strong>Диаграмма   антенны Y9 UHF в Е-плоскости</strong></td>
<td style="text-align: center;" width="281"><strong>Диаграмма   антенны Y9 UHF в H-плоскости</strong></td>
</tr>
<tr height="20">
<td height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y9-UHF_DE.gif"><img class="aligncenter size-full wp-image-20269" title="Y9 UHF_DE" src="http://www.radiopro.ru/next/wp-content/uploads/Y9-UHF_DE.gif" alt="Y9 UHF_DE" width="220" height="152" /></a></td>
<td><a href="http://www.radiopro.ru/next/wp-content/uploads/Y9-UHF_DH.gif"><img class="aligncenter size-full wp-image-20270" title="Y9 UHF_DH" src="http://www.radiopro.ru/next/wp-content/uploads/Y9-UHF_DH.gif" alt="Y9 UHF_DH" width="220" height="150" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" colspan="2" height="20"><strong>Графики   КСВ антенн Y9 UHF(L, H)</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" colspan="2" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y9-UHF_SWR.gif"><img class="aligncenter size-full wp-image-20271" title="Y9 UHF_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/Y9-UHF_SWR.gif" alt="Y9 UHF_SWR" width="220" height="120" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20265</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial Y6 UHF</title>
		<link>http://www.radiopro.ru/?p=20257</link>
		<comments>http://www.radiopro.ru/?p=20257#comments</comments>
		<pubDate>Sun, 30 Dec 2018 21:15:18 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Направленные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20257</guid>
		<description><![CDATA[Профессиональная, широкополосная, направленная 6 элементная абонентская антенна UHF диапазона 400-445 и 435-475 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/Y6-UHF.gif"><img class="alignright size-medium wp-image-20258" title="Y6 UHF" src="http://www.radiopro.ru/next/wp-content/uploads/Y6-UHF-300x210.gif" alt="Y6 UHF" width="300" height="210" /></a>Антенна Y6 UHF разработана специально для эксплуатации в системах связи в районах с жесткими климатическими условиями: на крайнем Севере, высокогорных районах, в морской климатической зоне. Цельносварная конструкция делает ее неуязвимой для обледенения и сильных ветров. Полимерное покрытие защищает от воздействия агрессивных сред. Антенна Y6 UHF — отличное решение при создании линков между базовыми станциями пейджинговой или транкинговой связи. Один раз поставив антенну Y6 UHF, о ней можно забыть надолго.</p>
<table border="0" cellspacing="0" cellpadding="0" width="375">
<colgroup>
<col width="237"></col>
<col width="68"></col>
<col width="70"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="375" height="20">Электрические   характеристики</td>
</tr>
<tr height="20">
<td width="237" height="20">Модель</td>
<td width="68">Y6 UHF(L)</td>
<td width="70">Y6 UHF(H)</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>400-445</td>
<td width="70">435-475</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td colspan="2" width="138">1,5</td>
</tr>
<tr height="20">
<td height="20">Усиление в середине диапазона, dBi</td>
<td colspan="2" width="138">11.15</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения по уровню -3dB</td>
<td colspan="2" width="138"></td>
</tr>
<tr height="20">
<td style="text-align: right;" height="20">в вертикальной плоскости</td>
<td style="text-align: left;" colspan="2" width="138">53°</td>
</tr>
<tr height="20">
<td style="text-align: right;" height="20">в горизонтальной плоскости</td>
<td style="text-align: left;" colspan="2" width="138">60°</td>
</tr>
<tr height="20">
<td height="20">Поляризация</td>
<td colspan="2" width="138">вертикальная</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td colspan="2" width="138">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td colspan="2" width="138">400</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="571">
<colgroup>
<col width="433"></col>
<col width="68"></col>
<col width="70"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="571" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="433" height="20">Модель</td>
<td width="68">Y6 UHF(L)</td>
<td width="70">Y6 UHF(H)</td>
</tr>
<tr height="20">
<td height="20">Масса, кг</td>
<td colspan="2" width="138">2,45</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны, мм</td>
<td colspan="2" width="138">1100х350х120</td>
</tr>
<tr height="20">
<td height="20">Материал антенны</td>
<td colspan="2" width="138">АД-31</td>
</tr>
<tr height="20">
<td height="20">Диаметр мачты, мм</td>
<td colspan="2" width="138">38-65</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра, м/c</td>
<td colspan="2" width="138">45</td>
</tr>
<tr height="20">
<td height="20">Площадь ветрового сопротивления, м<sup>2</sup></td>
<td colspan="2" width="138">0,04</td>
</tr>
<tr height="20">
<td height="20">Нагрузка при боковом ветре 45 м/c, Н</td>
<td colspan="2" width="138">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/c</td>
<td colspan="2" width="138">28</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td colspan="2" width="138">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td colspan="2" width="138">N-мама</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="560">
<colgroup>
<col width="279"></col>
<col width="281"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="279" height="20"><strong>Диаграмма   антенны Y6 UHF в Е-плоскости</strong></td>
<td style="text-align: center;" width="281"><strong>Диаграмма   антенны Y6 UHF в H-плоскости</strong></td>
</tr>
<tr height="20">
<td height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y6-UHF_DE.gif"><img class="aligncenter size-full wp-image-20261" title="Y6 UHF_DE" src="http://www.radiopro.ru/next/wp-content/uploads/Y6-UHF_DE.gif" alt="Y6 UHF_DE" width="220" height="149" /></a></td>
<td><a href="http://www.radiopro.ru/next/wp-content/uploads/Y6-UHF_DH.gif"><img class="aligncenter size-full wp-image-20262" title="Y6 UHF_DH" src="http://www.radiopro.ru/next/wp-content/uploads/Y6-UHF_DH.gif" alt="Y6 UHF_DH" width="220" height="150" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" colspan="2" height="20"><strong>Графики   КСВ антенн Y6 UHF(L, H)</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" colspan="2" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y6-UHF_SWR.gif"><img class="aligncenter size-full wp-image-20263" title="Y6 UHF_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/Y6-UHF_SWR.gif" alt="Y6 UHF_SWR" width="220" height="120" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20257</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial Y4 UHF</title>
		<link>http://www.radiopro.ru/?p=20248</link>
		<comments>http://www.radiopro.ru/?p=20248#comments</comments>
		<pubDate>Fri, 28 Dec 2018 13:17:03 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Направленные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20248</guid>
		<description><![CDATA[Профессиональная, широкополосная, направленная 4-х элементная абонентская антенна UHF диапазона 390-440 и 430-490 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/Y4-UHF.gif"><img class="alignright size-full wp-image-20249" title="Y4 UHF" src="http://www.radiopro.ru/next/wp-content/uploads/Y4-UHF.gif" alt="Y4 UHF" width="275" height="216" /></a>Антенна Y4 UHF разработана специально для эксплуатации в системах связи в районах с жесткими климатическими условиями: на крайнем Севере, высокогорных районах, в морской климатической зоне. Цельносварная конструкция делает ее неуязвимой для обледенения и сильных ветров. Полимерное покрытие защищает от воздействия агрессивных сред. Благодаря широкой рабочей полосе эта антенна оптимально подойдет для работы абонентской радиостанции, работающей с разносом 10-12 МГц. Не все антенны способны обеспечить такую полосу.</p>
<table border="0" cellspacing="0" cellpadding="0" width="375">
<colgroup>
<col width="237"></col>
<col width="68"></col>
<col width="70"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" colspan="3" width="375" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" width="237" height="20">Модель</td>
<td width="68">Y4 UHF(L)</td>
<td width="70">Y4 UHF(H)</td>
</tr>
<tr height="20">
<td height="20">Рабочий диапазон частот, МГц</td>
<td>390-440</td>
<td width="70">430-490</td>
</tr>
<tr height="20">
<td height="20">КСВ, не хуже</td>
<td colspan="2" width="138">1,5</td>
</tr>
<tr height="20">
<td height="20">Усиление в середине диапазона, dBi</td>
<td colspan="2" width="138">5.15</td>
</tr>
<tr height="20">
<td height="20">Сектор излучения по уровню -3dB</td>
<td colspan="2" width="138"></td>
</tr>
<tr height="20">
<td style="text-align: right;" height="20">в вертикальной плоскости</td>
<td colspan="2" width="138">63°</td>
</tr>
<tr height="20">
<td style="text-align: right;" height="20">в горизонтальной плоскости</td>
<td colspan="2" width="138">68°</td>
</tr>
<tr height="20">
<td height="20">Поляризация</td>
<td colspan="2" width="138">вертикальная</td>
</tr>
<tr height="20">
<td height="20">Входное сопротивление, Ом</td>
<td colspan="2" width="138">50</td>
</tr>
<tr height="20">
<td height="20">Допустимая мощность, Вт</td>
<td colspan="2" width="138">400</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="601">
<colgroup>
<col width="433"></col>
<col span="2" width="84"></col>
</colgroup>
<tbody>
<tr height="20">
<td colspan="3" width="601" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr height="20">
<td width="433" height="20">Модель</td>
<td width="84">Y4 UHF(L)</td>
<td width="84">Y4 UHF(H)</td>
</tr>
<tr height="20">
<td height="20">Масса, кг</td>
<td style="text-align: center;" colspan="2" width="168">1,45</td>
</tr>
<tr height="20">
<td height="20">Габариты антенны, мм</td>
<td style="text-align: center;" colspan="2" width="168">840х350х120</td>
</tr>
<tr height="20">
<td height="20">Материал антенны</td>
<td style="text-align: center;" colspan="2" width="168">АД-31</td>
</tr>
<tr height="20">
<td height="20">Диаметр мачты, мм</td>
<td style="text-align: center;" colspan="2" width="168">25-55</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра, м/с</td>
<td style="text-align: center;" colspan="2" width="168">45</td>
</tr>
<tr height="20">
<td height="20">Площадь ветрового сопротивления, м<sup>2</sup></td>
<td>0,05</td>
<td width="84">0,04</td>
</tr>
<tr height="20">
<td height="20">Нагрузка при боковом ветре 45 м/с, Н</td>
<td>55</td>
<td width="84">45</td>
</tr>
<tr height="20">
<td height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/с</td>
<td style="text-align: center;" colspan="2" width="168">28</td>
</tr>
<tr height="20">
<td height="20">Диапазон рабочих температур, °С</td>
<td style="text-align: center;" colspan="2" width="168">от -50 до +50</td>
</tr>
<tr height="20">
<td height="20">Разъем</td>
<td style="text-align: center;" colspan="2" width="168">N-мама</td>
</tr>
<tr height="20">
<td height="20">Габариты упаковки, мм</td>
<td>890х360х130</td>
<td width="84">755х325х130</td>
</tr>
</tbody>
</table>
<table border="0" cellspacing="0" cellpadding="0" width="560">
<colgroup>
<col width="279"></col>
<col width="281"></col>
</colgroup>
<tbody>
<tr height="20">
<td style="text-align: center;" width="279" height="20"><strong>Диаграмма   антенны Y4 UHF в Е-плоскости</strong></td>
<td style="text-align: center;" width="281"><strong>Диаграмма   антенны Y4 UHF в H-плоскости</strong></td>
</tr>
<tr height="20">
<td height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y4-UHF_DE.gif"><img class="aligncenter size-full wp-image-20250" title="Y4 UHF_DE" src="http://www.radiopro.ru/next/wp-content/uploads/Y4-UHF_DE.gif" alt="Y4 UHF_DE" width="220" height="148" /></a></td>
<td><a href="http://www.radiopro.ru/next/wp-content/uploads/Y4-UHF_DH.gif"><img class="aligncenter size-full wp-image-20251" title="Y4 UHF_DH" src="http://www.radiopro.ru/next/wp-content/uploads/Y4-UHF_DH.gif" alt="Y4 UHF_DH" width="220" height="148" /></a></td>
</tr>
<tr height="20">
<td style="text-align: center;" colspan="2" height="20"><strong>Графики   КСВ антенн Y4 UHF(L, H)</strong></td>
</tr>
<tr height="20">
<td style="text-align: center;" colspan="2" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y4-UHF_SWR.gif"><img class="aligncenter size-full wp-image-20252" title="Y4 UHF_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/Y4-UHF_SWR.gif" alt="Y4 UHF_SWR" width="220" height="120" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20248</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial Y9-T</title>
		<link>http://www.radiopro.ru/?p=20241</link>
		<comments>http://www.radiopro.ru/?p=20241#comments</comments>
		<pubDate>Fri, 28 Dec 2018 13:06:03 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Направленные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20241</guid>
		<description><![CDATA[Профессиональная, широкополосная, направленная 9 элементная абонентская антенна UHF диапазона 380-400 МГц.]]></description>
			<content:encoded><![CDATA[<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Волновые каналы с петлевыми вибраторами теперь разработаны нами и на диапазон &laquo;Европейской&raquo; ТЕТРЫ 380-400 МГц.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Этим антеннам присущи все достоинства цельносварных волновых каналов &#8211; механическая прочность, временная и погодная устойчивость параметров, удобство транспортировки и монтажа.</div>
<p><a href="http://www.radiopro.ru/next/wp-content/uploads/Y9-T.jpg"><img class="alignright size-full wp-image-20242" title="Y9-T" src="http://www.radiopro.ru/next/wp-content/uploads/Y9-T.jpg" alt="Y9-T" width="221" height="160" /></a>Волновые каналы с петлевыми вибраторами теперь разработаны нами и на диапазон &laquo;Европейской&raquo; ТЕТРЫ 380-400 МГц.</p>
<p>Этим антеннам присущи все достоинства цельносварных волновых каналов &#8211; механическая прочность, временная и погодная устойчивость параметров, удобство транспортировки и монтажа.</p>
<table style="border-collapse: collapse; width: 376pt;" border="0" cellspacing="0" cellpadding="0" width="501">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 8667; width: 178pt;" width="237"></col>
<col style="mso-width-source: userset; mso-width-alt: 3218; width: 66pt;" span="3" width="88"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl71" style="height: 15.0pt; width: 376pt;" colspan="4" width="501" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 178pt;" width="237" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">Y4-T</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">Y6-T</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">Y9-T</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">380-400</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">380-400</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">380-400</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl70" style="border-top: none; border-left: none; margin-right: 0px;">1.5</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">1,5</td>
<td class="xl74" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">1.5</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление в середине диапазона, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl72" style="border-top: none; border-left: none; margin-right: 0px;">8.15</td>
<td class="xl73" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">11.15</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">13.15</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения по уровню -3dB</td>
<td class="xl71" style="border-left: none; width: 198pt; margin-right: 0px;" colspan="3" width="264"></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в вертикальной плоскости</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">60°</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">50°</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">40°</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в горизонтальной плоскости</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">60°</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">50°</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">38°</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Поляризация</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">вертикальная</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">вертикальная</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">вертикальная</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">50</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">50</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">200</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">200</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">200</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 526pt;" border="0" cellspacing="0" cellpadding="0" width="701">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 15835; width: 325pt;" width="433"></col>
<col style="mso-width-source: userset; mso-width-alt: 3072; width: 63pt;" width="84"></col>
<col style="mso-width-source: userset; mso-width-alt: 3364; width: 69pt;" span="2" width="92"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; width: 526pt;" colspan="4" width="701" height="20">Механические   характеристики</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; width: 325pt;" width="433" height="20">Модель</td>
<td class="xl68" style="border-top: none; border-left: none; width: 63pt; margin-right: 0px;" width="84">Y4-T</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">Y6-T</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">Y9-T</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Масса, кг</td>
<td class="xl70" style="border-top: none; border-left: none; margin-right: 0px;">1.45</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">2,5</td>
<td class="xl71" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">2.8</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Габариты антенны, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">810&#215;380x140</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">1250х380х140</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">2100&#215;380x140</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал антенны</td>
<td class="xl72" style="border-right: 0.5pt solid black; border-left: none; margin-right: 0px; text-align: center;" colspan="3">АД-31</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диаметр мачты, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">25-55</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">38-65</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">38-65</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра, м/c</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">50</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">45</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">45</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Площадь ветрового сопротивления, м<span class="font5"><sup>2</sup></span></td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">0.04</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">0,05</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">0.08</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Нагрузка при боковом ветре 45 м/c, Н</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">45</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">55</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">87</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/c</td>
<td class="xl72" style="border-right: 0.5pt solid black; border-left: none; margin-right: 0px; text-align: center;" colspan="3">28</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диапазон рабочих температур, °С</td>
<td class="xl72" style="border-right: 0.5pt solid black; border-left: none; margin-right: 0px; text-align: center;" colspan="3">от -50 до +50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl72" style="border-right: 0.5pt solid black; border-left: none; margin-right: 0px; text-align: center;" colspan="3">N-мама</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 179pt;" border="0" cellspacing="0" cellpadding="0" width="238">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 8704; width: 179pt;" width="238"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 179pt; text-align: center;" width="238" height="20"><strong>Графики   КСВ</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y9-T_SWR.jpg"><img class="aligncenter size-full wp-image-20243" title="Y9-T_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/Y9-T_SWR.jpg" alt="Y9-T_SWR" width="189" height="94" /></a></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>Диаграммы антенны в Е-плоскости</strong></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y9-T_DE.gif"><img class="aligncenter size-full wp-image-20244" title="Y9-T_DE" src="http://www.radiopro.ru/next/wp-content/uploads/Y9-T_DE.gif" alt="Y9-T_DE" width="180" height="124" /></a></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>Диаграммы антенны в Н-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y9-T_DH.gif"><img class="aligncenter size-full wp-image-20245" title="Y9-T_DH" src="http://www.radiopro.ru/next/wp-content/uploads/Y9-T_DH.gif" alt="Y9-T_DH" width="180" height="123" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20241</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial Y6-T</title>
		<link>http://www.radiopro.ru/?p=20234</link>
		<comments>http://www.radiopro.ru/?p=20234#comments</comments>
		<pubDate>Fri, 28 Dec 2018 13:01:57 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Направленные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20234</guid>
		<description><![CDATA[Профессиональная, широкополосная, направленная 6 элементная абонентская антенна UHF диапазона 380-400 МГц.]]></description>
			<content:encoded><![CDATA[<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Волновые каналы с петлевыми вибраторами теперь разработаны нами и на диапазон &laquo;Европейской&raquo; ТЕТРЫ 380-400 МГц.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Этим антеннам присущи все достоинства цельносварных волновых каналов &#8211; механическая прочность, временная и погодная устойчивость параметров, удобство транспортировки и монтажа.</div>
<p><a href="http://www.radiopro.ru/next/wp-content/uploads/Y6-T.jpg"><img class="alignright size-full wp-image-20235" title="Y6-T" src="http://www.radiopro.ru/next/wp-content/uploads/Y6-T.jpg" alt="Y6-T" width="237" height="160" /></a>Волновые каналы с петлевыми вибраторами теперь разработаны нами и на диапазон &laquo;Европейской&raquo; ТЕТРЫ 380-400 МГц.</p>
<p>Этим антеннам присущи все достоинства цельносварных волновых каналов &#8211; механическая прочность, временная и погодная устойчивость параметров, удобство транспортировки и монтажа.</p>
<table style="border-collapse: collapse; width: 376pt;" border="0" cellspacing="0" cellpadding="0" width="501">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 8667; width: 178pt;" width="237"></col>
<col style="mso-width-source: userset; mso-width-alt: 3218; width: 66pt;" span="3" width="88"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl71" style="height: 15.0pt; width: 376pt;" colspan="4" width="501" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 178pt;" width="237" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">Y4-T</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">Y6-T</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">Y9-T</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">380-400</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">380-400</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">380-400</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl70" style="border-top: none; border-left: none; margin-right: 0px;">1.5</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">1,5</td>
<td class="xl74" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">1.5</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление в середине диапазона, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl72" style="border-top: none; border-left: none; margin-right: 0px;">8.15</td>
<td class="xl73" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">11.15</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">13.15</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения по уровню -3dB</td>
<td class="xl71" style="border-left: none; width: 198pt; margin-right: 0px;" colspan="3" width="264"></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в вертикальной плоскости</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">60°</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">50°</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">40°</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в горизонтальной плоскости</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">60°</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">50°</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">38°</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Поляризация</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">вертикальная</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">вертикальная</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">вертикальная</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">50</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">50</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">200</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">200</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">200</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 526pt;" border="0" cellspacing="0" cellpadding="0" width="701">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 15835; width: 325pt;" width="433"></col>
<col style="mso-width-source: userset; mso-width-alt: 3072; width: 63pt;" width="84"></col>
<col style="mso-width-source: userset; mso-width-alt: 3364; width: 69pt;" span="2" width="92"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; width: 526pt;" colspan="4" width="701" height="20">Механические   характеристики</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; width: 325pt;" width="433" height="20">Модель</td>
<td class="xl68" style="border-top: none; border-left: none; width: 63pt; margin-right: 0px;" width="84">Y4-T</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">Y6-T</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">Y9-T</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Масса, кг</td>
<td class="xl70" style="border-top: none; border-left: none; margin-right: 0px;">1.45</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">2,5</td>
<td class="xl71" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">2.8</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Габариты антенны, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">810&#215;380x140</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">1250х380х140</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">2100&#215;380x140</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал антенны</td>
<td class="xl72" style="border-right: 0.5pt solid black; border-left: none; margin-right: 0px; text-align: center;" colspan="3">АД-31</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диаметр мачты, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">25-55</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">38-65</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">38-65</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра, м/c</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">50</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">45</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">45</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Площадь ветрового сопротивления, м<span class="font5"><sup>2</sup></span></td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">0.04</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">0,05</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">0.08</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Нагрузка при боковом ветре 45 м/c, Н</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">45</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">55</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">87</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/c</td>
<td class="xl72" style="border-right: 0.5pt solid black; border-left: none; margin-right: 0px; text-align: center;" colspan="3">28</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диапазон рабочих температур, °С</td>
<td class="xl72" style="border-right: 0.5pt solid black; border-left: none; margin-right: 0px; text-align: center;" colspan="3">от -50 до +50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl72" style="border-right: 0.5pt solid black; border-left: none; margin-right: 0px; text-align: center;" colspan="3">N-мама</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 179pt;" border="0" cellspacing="0" cellpadding="0" width="238">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 8704; width: 179pt;" width="238"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 179pt; text-align: center;" width="238" height="20"><strong>Графики   КСВ</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y6-T_SWR.jpg"><img class="aligncenter size-full wp-image-20236" title="Y6-T_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/Y6-T_SWR.jpg" alt="Y6-T_SWR" width="189" height="94" /></a></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>Диаграммы антенны в Е-плоскости</strong></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y6-T_DE.gif"><img class="aligncenter size-full wp-image-20237" title="Y6-T_DE" src="http://www.radiopro.ru/next/wp-content/uploads/Y6-T_DE.gif" alt="Y6-T_DE" width="180" height="122" /></a></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>Диаграммы антенны в Н-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y6-T_DH.gif"><img class="aligncenter size-full wp-image-20238" title="Y6-T_DH" src="http://www.radiopro.ru/next/wp-content/uploads/Y6-T_DH.gif" alt="Y6-T_DH" width="180" height="123" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20234</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial Y4-T</title>
		<link>http://www.radiopro.ru/?p=20225</link>
		<comments>http://www.radiopro.ru/?p=20225#comments</comments>
		<pubDate>Fri, 28 Dec 2018 12:54:37 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Направленные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20225</guid>
		<description><![CDATA[Профессиональная, широкополосная, направленная 4-х элементная абонентская антенна UHF диапазона 380-400 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/Y4-T.jpg"><img class="alignright size-full wp-image-20226" title="Y4-T" src="http://www.radiopro.ru/next/wp-content/uploads/Y4-T.jpg" alt="Y4-T" width="188" height="160" /></a></p>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Волновые каналы с петлевыми вибраторами теперь разработаны нами и на диапазон &laquo;Европейской&raquo; ТЕТРЫ 380-400 МГц.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Этим антеннам присущи все достоинства цельносварных волновых каналов &#8211; механическая прочность, временная и погодная устойчивость параметров, удобство транспортировки и монтажа.</div>
<p>Волновые каналы с петлевыми вибраторами теперь разработаны нами и на диапазон &laquo;Европейской&raquo; ТЕТРЫ 380-400 МГц.</p>
<p>Этим антеннам присущи все достоинства цельносварных волновых каналов &#8211; механическая прочность, временная и погодная устойчивость параметров, удобство транспортировки и монтажа.</p>
<table style="border-collapse: collapse; width: 376pt;" border="0" cellspacing="0" cellpadding="0" width="501">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 8667; width: 178pt;" width="237"></col>
<col style="mso-width-source: userset; mso-width-alt: 3218; width: 66pt;" span="3" width="88"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl71" style="height: 15.0pt; width: 376pt;" colspan="4" width="501" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 178pt;" width="237" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">Y4-T</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">Y6-T</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">Y9-T</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">380-400</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">380-400</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">380-400</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl70" style="border-top: none; border-left: none; margin-right: 0px;">1.5</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">1,5</td>
<td class="xl74" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">1.5</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление в середине диапазона, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl72" style="border-top: none; border-left: none; margin-right: 0px;">8.15</td>
<td class="xl73" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">11.15</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">13.15</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения по уровню -3dB</td>
<td class="xl71" style="border-left: none; width: 198pt; margin-right: 0px;" colspan="3" width="264"></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в вертикальной плоскости</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">60°</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">50°</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">40°</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в горизонтальной плоскости</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">60°</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">50°</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">38°</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Поляризация</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">вертикальная</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">вертикальная</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">вертикальная</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">50</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">50</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">200</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">200</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">200</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 526pt;" border="0" cellspacing="0" cellpadding="0" width="701">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 15835; width: 325pt;" width="433"></col>
<col style="mso-width-source: userset; mso-width-alt: 3072; width: 63pt;" width="84"></col>
<col style="mso-width-source: userset; mso-width-alt: 3364; width: 69pt;" span="2" width="92"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; width: 526pt;" colspan="4" width="701" height="20">Механические   характеристики</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; width: 325pt;" width="433" height="20">Модель</td>
<td class="xl68" style="border-top: none; border-left: none; width: 63pt; margin-right: 0px;" width="84">Y4-T</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">Y6-T</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">Y9-T</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Масса, кг</td>
<td class="xl70" style="border-top: none; border-left: none; margin-right: 0px;">1.45</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">2,5</td>
<td class="xl71" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">2.8</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Габариты антенны, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">810&#215;380x140</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">1250х380х140</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">2100&#215;380x140</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал антенны</td>
<td class="xl72" style="border-right: 0.5pt solid black; border-left: none; margin-right: 0px; text-align: center;" colspan="3">АД-31</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диаметр мачты, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">25-55</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">38-65</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">38-65</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра, м/c</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">50</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">45</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">45</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Площадь ветрового сопротивления, м<span class="font5"><sup>2</sup></span></td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">0.04</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">0,05</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">0.08</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Нагрузка при боковом ветре 45 м/c, Н</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">45</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">55</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">87</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/c</td>
<td class="xl72" style="border-right: 0.5pt solid black; border-left: none; margin-right: 0px; text-align: center;" colspan="3">28</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диапазон рабочих температур, °С</td>
<td class="xl72" style="border-right: 0.5pt solid black; border-left: none; margin-right: 0px; text-align: center;" colspan="3">от -50 до +50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl72" style="border-right: 0.5pt solid black; border-left: none; margin-right: 0px; text-align: center;" colspan="3">N-мама</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 179pt;" border="0" cellspacing="0" cellpadding="0" width="238">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 8704; width: 179pt;" width="238"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 179pt; text-align: center;" width="238" height="20"><strong>Графики   КСВ</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y4-T_SWR.jpg"><img class="aligncenter size-full wp-image-20228" title="Y4-T_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/Y4-T_SWR.jpg" alt="Y4-T_SWR" width="189" height="94" /></a></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>Диаграммы антенны в Е-плоскости</strong></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y4-T_DE.gif"><img class="aligncenter size-full wp-image-20229" title="Y4-T_DE" src="http://www.radiopro.ru/next/wp-content/uploads/Y4-T_DE.gif" alt="Y4-T_DE" width="180" height="121" /></a></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><strong>Диаграммы антенны в Н-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; border-top: none; margin-right: 0px; text-align: center;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y4-T_DH.gif"><img class="aligncenter size-full wp-image-20230" title="Y4-T_DH" src="http://www.radiopro.ru/next/wp-content/uploads/Y4-T_DH.gif" alt="Y4-T_DH" width="180" height="121" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20225</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial Y5 ALT М</title>
		<link>http://www.radiopro.ru/?p=20218</link>
		<comments>http://www.radiopro.ru/?p=20218#comments</comments>
		<pubDate>Fri, 28 Dec 2018 12:31:48 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Направленные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20218</guid>
		<description><![CDATA[Профессиональная, широкополосная, направленная 5 элементная абонентская антенна VHF диапазона 295-350 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-ALT-М.gif"><img class="alignright size-full wp-image-20219" title="Y5 ALT М" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-ALT-М.gif" alt="Y5 ALT М" width="300" height="245" /></a></p>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Пятиэлементный волновой канал с петлевым вибратором симметричной системы запитки &#8211; Y5 ALT M &#8211; позволяет организовывать работу на сильно разнесенных частотах (36 МГц), имеет высокое усиление, дает возможность повышать усиления за счет создания антенных решеток.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Механическую прочность новой антенны обеспечивают сварная конструкция и литые силуминовые лапы, позволяющие крепить антенну на мачте диаметром 38-65 мм. Съемный вибратор обеспечивает лучшую погодозащищенность. Антенну Y5 ALT M успешно применяют в качестве базовой в системах связи &laquo;Алтай&raquo;, &laquo;Валдай&raquo;, &laquo;Волемот&raquo;, а также радиостанций речного регистра и радио-телефонных удлинителей &laquo;Рауд&raquo;.</div>
<p>Пятиэлементный волновой канал с петлевым вибратором симметричной системы запитки &#8211; Y5 ALT M &#8211; позволяет организовывать работу на сильно разнесенных частотах (36 МГц), имеет высокое усиление, дает возможность повышать усиления за счет создания антенных решеток.</p>
<p>Механическую прочность новой антенны обеспечивают сварная конструкция и литые силуминовые лапы, позволяющие крепить антенну на мачте диаметром 38-65 мм. Съемный вибратор обеспечивает лучшую погодозащищенность. Антенну Y5 ALT M успешно применяют в качестве базовой в системах связи &laquo;Алтай&raquo;, &laquo;Валдай&raquo;, &laquo;Волемот&raquo;, а также радиостанций речного регистра и радио-телефонных удлинителей &laquo;Рауд&raquo;.</p>
<table style="border-collapse: collapse; width: 238pt;" border="0" cellspacing="0" cellpadding="0" width="317">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 8374; width: 172pt;" width="229"></col>
<col style="mso-width-source: userset; mso-width-alt: 3218; width: 66pt;" width="88"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl71" style="height: 15.0pt; width: 238pt;" colspan="2" width="317" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 172pt;" width="229" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">Y5 ALT M</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">295-350</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">1,5</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl70" style="border-top: none; border-left: none; margin-right: 0px;">8.5</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения по уровню -3dB</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;"></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в вертикальной плоскости</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px; text-align: left;">60</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в горизонтальной плоскости</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">75</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Поляризация</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">вертикальная</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">200</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 394pt;" border="0" cellspacing="0" cellpadding="0" width="525">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 15835; width: 325pt;" width="433"></col>
<col style="mso-width-source: userset; mso-width-alt: 3364; width: 69pt;" width="92"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl70" style="height: 15.0pt; width: 394pt;" colspan="2" width="525" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; width: 325pt;" width="433" height="20">Модель</td>
<td class="xl68" style="border-top: none; border-left: none; width: 69pt; margin-right: 0px;" width="92">Y5 ALT M</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Масса, кг</td>
<td class="xl69" style="border-top: none; border-left: none; margin-right: 0px;">1.5</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Габариты антенны, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">1030&#215;500x130</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал антенны</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">АД-31</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диаметр мачты, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">38-65</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра, м/с</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">45</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Площадь ветрового сопротивления, м<span class="font5"><sup>2</sup></span></td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">0.0536</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Нагрузка при боковом ветре 45 м/с, Н</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">65</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/с</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">28</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диапазон рабочих температур, °С</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">от   -50 до +50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">N-мама</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 438pt;" border="0" cellspacing="0" cellpadding="0" width="584">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 10642; width: 218pt;" width="291"></col>
<col style="mso-width-source: userset; mso-width-alt: 10715; width: 220pt;" width="293"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 218pt; text-align: center;" width="291" height="20"><strong>Диаграмма   антенны Y5 ALT M в Е-плоскости</strong></td>
<td class="xl67" style="border-left: none; width: 220pt; text-align: center;" width="293"><strong>Диаграмма   антенны Y5 ALT M в H-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-ALT-М_DE.gif"><img class="aligncenter size-full wp-image-20220" title="Y5 ALT М_DE" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-ALT-М_DE.gif" alt="Y5 ALT М_DE" width="220" height="152" /></a></td>
<td class="xl67" style="border-top: none; border-left: none;"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-ALT-М_DH.gif"><img class="aligncenter size-full wp-image-20221" title="Y5 ALT М_DH" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-ALT-М_DH.gif" alt="Y5 ALT М_DH" width="220" height="147" /></a></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="border-right: 0.5pt solid black; height: 15pt; margin-right: 0px; text-align: center;" colspan="2" height="20"><strong>График КСВ антенны Y5 ALT M</strong></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="border-right: 0.5pt solid black; height: 15pt; margin-right: 0px; text-align: center;" colspan="2" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y5-ALT-М_SWR.gif"><img class="aligncenter size-full wp-image-20222" title="Y5 ALT М_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/Y5-ALT-М_SWR.gif" alt="Y5 ALT М_SWR" width="220" height="114" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20218</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
		<item>
		<title>Radial Y3 ALT М</title>
		<link>http://www.radiopro.ru/?p=20210</link>
		<comments>http://www.radiopro.ru/?p=20210#comments</comments>
		<pubDate>Fri, 28 Dec 2018 12:14:03 +0000</pubDate>
		<dc:creator>Олег</dc:creator>
				<category><![CDATA[Направленные антенны]]></category>

		<guid isPermaLink="false">http://www.radiopro.ru/?p=20210</guid>
		<description><![CDATA[Профессиональная, широкополосная, направленная 3-х элементная абонентская антенна VHF диапазона 290-350 МГц.]]></description>
			<content:encoded><![CDATA[<p><a href="http://www.radiopro.ru/next/wp-content/uploads/Y3-ALT-М.gif"><img class="alignright size-full wp-image-20211" title="Y3 ALT М" src="http://www.radiopro.ru/next/wp-content/uploads/Y3-ALT-М.gif" alt="Y3 ALT М" width="220" height="260" /></a></p>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">К достоинствам антенны Y3 ALT(M) можно отнести возможность работы на сильно разнесенных частотах (36 МГц), высокое усиление, цельносварную конструкцию, обеспечивающую механическую прочность; надежное полимерное покрытие, защищающее от агрессивных сред и обледенения.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Y3 ALT M &#8211; трехэлементный волновой канал с петлевым вибратором симметричной системой запитки.</div>
<div id="_mcePaste" style="position: absolute; left: -10000px; top: 0px; width: 1px; height: 1px; overflow: hidden;">Рекомендуется использовать в системах МРТ1327, телеметрии и связи речного флота.</div>
<p>К достоинствам антенны Y3 ALT(M) можно отнести возможность работы на сильно разнесенных частотах (36 МГц), высокое усиление, цельносварную конструкцию, обеспечивающую механическую прочность; надежное полимерное покрытие, защищающее от агрессивных сред и обледенения.</p>
<p>Y3 ALT M &#8211; трехэлементный волновой канал с петлевым вибратором симметричной системой запитки.</p>
<p>Рекомендуется использовать в системах МРТ1327, телеметрии и связи речного флота.</p>
<table style="border-collapse: collapse; width: 229pt;" border="0" cellspacing="0" cellpadding="0" width="305">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 7936; width: 163pt;" width="217"></col>
<col style="mso-width-source: userset; mso-width-alt: 3218; width: 66pt;" width="88"></col>
</colgroup>
<tbody>
<tr style="height: 15.0pt;" height="20">
<td class="xl71" style="height: 15.0pt; width: 229pt;" colspan="2" width="305" height="20"><strong>Электрические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; border-top: none; width: 163pt;" width="217" height="20">Модель</td>
<td class="xl69" style="border-top: none; border-left: none; width: 66pt; margin-right: 0px;" width="88">Y3 ALT M</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Рабочий диапазон частот, МГц</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">290-350</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">КСВ, не хуже</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">1,5</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Усиление, <span class="font6">dB</span><span class="font5">i</span></td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">6</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Сектор излучения по уровню -3dB</td>
<td class="xl70" style="border-top: none; border-left: none; margin-right: 0px;"></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в вертикальной плоскости</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">70</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15pt; border-top: none; margin-right: 0px; text-align: right;" height="20">в горизонтальной плоскости</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">140</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Поляризация</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">вертикальная</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Входное сопротивление, Ом</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая мощность, Вт</td>
<td class="xl68" style="border-top: none; border-left: none; margin-right: 0px;">200</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 390pt;" border="0" cellspacing="0" cellpadding="0" width="519">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 15835; width: 325pt;" width="433"></col>
<col style="mso-width-source: userset; mso-width-alt: 3145; width: 65pt;" width="86"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl69" style="height: 15.0pt; width: 390pt;" colspan="2" width="519" height="20"><strong>Механические   характеристики</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl68" style="height: 15.0pt; border-top: none; width: 325pt;" width="433" height="20">Модель</td>
<td class="xl68" style="border-top: none; border-left: none; width: 65pt; margin-right: 0px;" width="86">Y3 ALT M</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Масса, кг</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">1,3</td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Габариты антенны, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">800&#215;500x130</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Материал антенны</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">АД-31</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диаметр мачты, мм</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">38-65</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра, м/с</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">45</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Площадь ветрового сопротивления, м<span class="font5"><sup>2</sup></span></td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">0.039</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Нагрузка при боковом ветре 45 м/с, Н</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">48</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Допустимая скорость ветра при обледенении (слой льда 12 мм), м/с</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">28</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Диапазон рабочих температур, °С</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">от   -50 до +50</td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20">Разъем</td>
<td class="xl67" style="border-top: none; border-left: none; margin-right: 0px;">N-мама</td>
</tr>
</tbody>
</table>
<table style="border-collapse: collapse; width: 438pt;" border="0" cellspacing="0" cellpadding="0" width="584">
<colgroup>
<col style="mso-width-source: userset; mso-width-alt: 10642; width: 218pt;" width="291"></col>
<col style="mso-width-source: userset; mso-width-alt: 10715; width: 220pt;" width="293"></col>
</colgroup>
<tbody>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl67" style="height: 15pt; width: 218pt; text-align: center;" width="291" height="20"><strong>Диаграмма   антенны Y3 ALT M в Е-плоскости</strong></td>
<td class="xl67" style="border-left: none; width: 220pt; text-align: center;" width="293"><strong>Диаграмма   антенны Y3 ALT M в H-плоскости</strong></td>
</tr>
<tr style="height: 15.0pt;" height="20">
<td class="xl67" style="height: 15.0pt; border-top: none; margin-right: 0px;" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y3-ALT-М_DE.gif"><img class="aligncenter size-full wp-image-20213" title="Y3 ALT М_DE" src="http://www.radiopro.ru/next/wp-content/uploads/Y3-ALT-М_DE.gif" alt="Y3 ALT М_DE" width="220" height="146" /></a></td>
<td class="xl67" style="border-top: none; border-left: none;"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y3-ALT-М_DH.gif"><img class="aligncenter size-full wp-image-20214" title="Y3 ALT М_DH" src="http://www.radiopro.ru/next/wp-content/uploads/Y3-ALT-М_DH.gif" alt="Y3 ALT М_DH" width="220" height="149" /></a></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="border-right: 0.5pt solid black; height: 15pt; margin-right: 0px; text-align: center;" colspan="2" height="20"><strong>График КСВ антенны Y3 ALT M</strong></td>
</tr>
<tr style="mso-height-source: userset; height: 15.0pt;" height="20">
<td class="xl68" style="border-right: 0.5pt solid black; height: 15pt; margin-right: 0px; text-align: center;" colspan="2" height="20"><a href="http://www.radiopro.ru/next/wp-content/uploads/Y3-ALT-М_SWR.gif"><img class="aligncenter size-full wp-image-20215" title="Y3 ALT М_SWR" src="http://www.radiopro.ru/next/wp-content/uploads/Y3-ALT-М_SWR.gif" alt="Y3 ALT М_SWR" width="220" height="114" /></a></td>
</tr>
</tbody>
</table>
]]></content:encoded>
			<wfw:commentRss>http://www.radiopro.ru/?feed=rss2&amp;p=20210</wfw:commentRss>
		<slash:comments>0</slash:comments>
		</item>
	</channel>
</rss>
